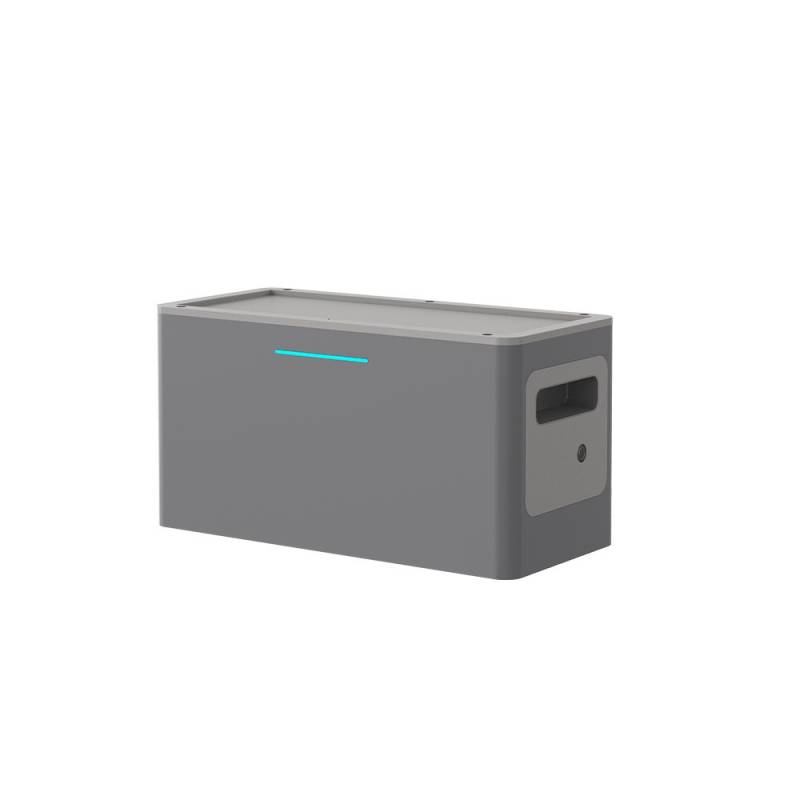

The Deye AE-F2.0 is the official 2 kWh expansion battery for the AE-F(S) 2.0-2H2 all-in-one system as well as balcony power plants and home storage applications. Featuring ultra-safe LiFePO₄ technology, ≥6000 cycles and parallel connection of up to 5 units (10 kWh total) – all in a compact 20 kg floor-standing module.
Key Features
Safe LiFePO₄ Cells
Maximum safety & thermal stability
2 kWh Capacity
51.2 V · 2000 Wh
Expandable to 10 kWh
Max. 5 modules in parallel
≥6000 Cycles
At 70 % remaining capacity
Compact & Lightweight
450×210×244 mm · only 20 kg
LED Status Display
SOC + alarm at a glance
10-Year Warranty
Full manufacturer coverage
Technical Specifications
| Parameter | Value |
|---|
| Battery Chemistry |
LiFePO₄ |
| Nominal Voltage |
51.2 V |
| Nominal Capacity |
2000 Wh (2 kWh) |
| Max. Charge/Discharge Current |
50 A |
| Operating Voltage |
44.8 – 57.6 V |
| Cycle Life |
≥6000 (0.5C, 70 % EOL) |
| Parallel Capability |
Max. 5 units → 10 kWh |
| Communication |
CAN 2.0 + LoRa |
| Dimensions (W×D×H) |
450 × 210 × 244 mm |
| Weight |
approx. 20 kg |
| Operating Temperature |
–10 °C to +50 °C |
| Certification |
UN38.3, IEC 62619, CE |
| Warranty |
10 Years |
Why Choose Deye AE-F2.0 for Your Home ESS?
- User-Friendly: Intuitive LED display keeps you informed about your energy levels at all times.
- Reliable Durability: Built for demanding environments, from extreme temperatures to high altitudes.
- Safe and Certified: Fully compliant with international safety standards, giving you peace of mind.
- Generous Warranty: Backed by a 10-year warranty, ensuring your investment is protected.
Whether you’re looking to maximize solar energy usage, prepare for outages, or increase your home’s energy independence, the Deye AE-F2.0 Battery Pack Module delivers dependable storage and exceptional performance. Its scalability, robust features, and sustainable battery technology make it a top-tier choice for modern homes. Upgrade your home ESS today with the Deye AE-F2.0 and experience the future of energy storage.
Deye AE-F2.0 Expansion Battery
2 kWh LiFePO₄ · ≥6000 Cycles · Up to 10 kWh · 10-Year Warranty
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Battery Model AE-F2.0 |
| Battery Chemistry |
LiFePO₄ |
| Battery Nominal Voltage |
51.2 V |
| Battery Nominal Energy |
2000 Wh |
| Max. Charging / Discharging Current |
50 A |
| Battery Operating Voltage |
44.8 – 57.6 V |
| Battery Cycle Life |
≥6000 (@25°C ±2°C, 0.5C/0.5C, 70% EOL) |
| Parallel Capability |
Up to 5 units (max. 10 kWh) |
| Other Technical Specification |
| Display |
LED (SOC, Alarm) |
| Communication Interfaces |
CAN2.0, LoRa |
| Dimensions (W × D × H) |
450 × 210 × 244 mm |
| Weight (Approx.) |
20 kg |
| Operating Temperature Range |
–10 °C to +50 °C |
| Max. Operating Altitude |
3000 m |
| Relative Humidity |
15 – 85 % (non-condensing) |
| Certification |
UN38.3, IEC 62619, CE |
| Installation Style |
Floor-Mounted |
| Warranty |
10 Years |
| Model: |
AE-F2.0 (EU) |
| Capacity: |
2000 Wh per Module |
| Parallel Operation: |
5 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
| Compatible with: |
AE-FS2.0 |
