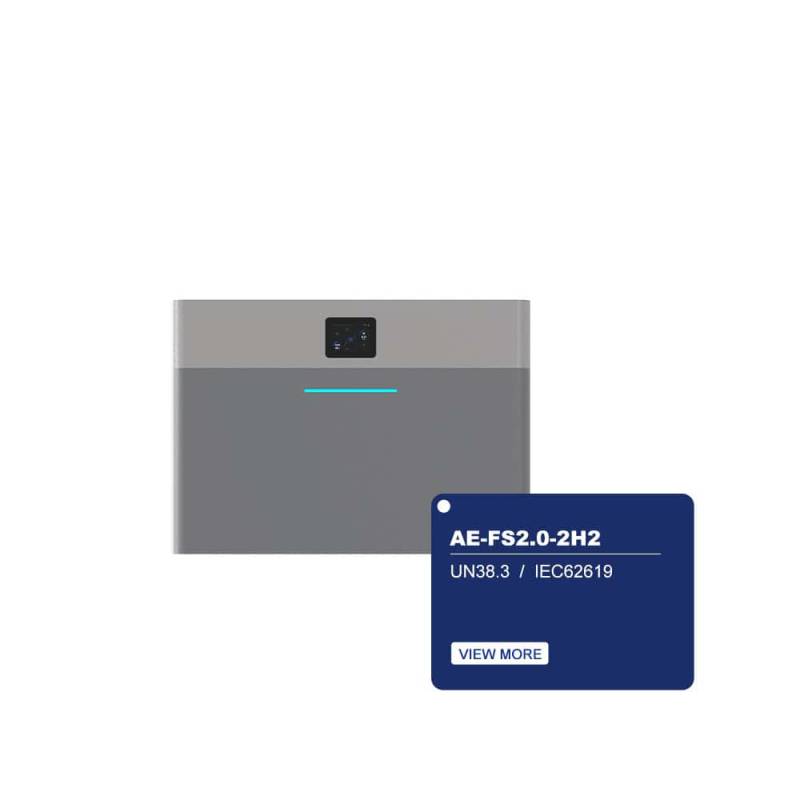

The Deye AE-F(S) 2.0-2H2 is the revolutionary all-in-one home and portable solar storage system with an integrated 2 kWh LiFePO₄ battery, 1000 W PV input, 800 W inverter and an ultra-fast 4 ms UPS switch-over. IP65-rated, app-controlled via Wi-Fi/Bluetooth, compact, mobile and expandable up to 10 kWh – the perfect solution for home backup, camping or commercial use.
Key Features
Robust & Safe
IP65, 10-year warranty, ≥6000 cycles, UN38.3 & IEC62619
Powerful Performance
1000 W PV input, 800 W AC/DC output, 4 ms UPS
Smart & Connected
Wi-Fi + Bluetooth + app control
Compact & Portable
450×210×321 mm, only ~26 kg
Expandable
Up to 4× AE-F2.0 extra batteries → 10 kWh
All-Weather Ready
–10 °C to +50 °C, up to 3000 m altitude
Easy Operation
Colour touch LCD + app
Technical Specifications
| Parameter | Value |
|---|
|
| Battery Chemistry |
LiFePO₄ |
| Nominal Capacity |
2 kWh (expandable to 10 kWh) |
| PV Input (max.) |
1000 W (2× MPPT) |
| AC Output |
800 W continuous / 1600 W peak (10 s) |
| UPS Switching Time |
≤4 ms |
| Protection Rating |
IP65 |
| Operating Temperature |
–10 °C to +50 °C |
| Dimensions (W×D×H) |
450 × 210 × 321 mm |
| Weight |
approx. 26 kg |
| Cycle Life |
≥6000 cycles |
| Warranty |
10 years (battery), 5 years (system) |
| Connectivity |
Wi-Fi, Bluetooth, app |
Deye AE-F(S) 2.0-2H2 – All-in-One Solar Storage
2 kWh · 1000 W PV · 800 W Output · 4 ms UPS · IP65 · App Control · Expandable to 10 kWh
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| System Model | AE-F(S) 2.0-2H2 |
|---|
| AC Technical Specifications |
| Nominal Input / Output Power / UPS Power |
1000 / 1000 W |
| AC Input / Output Frequency and Voltage |
50 Hz (45–55 Hz), 60 Hz (55–65 Hz), L/N/PE, 220/230 Vac |
| Grid Type |
Single Phase |
| Rated Grid Input / Output Current |
4.6 A / 4.4 A |
| Max. Grid Input / Output Current |
5.0 A / 4.8 A |
| Peak Power (off-grid) |
2 × rated power, 10 s |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Max. Bypass Grid to Load |
10 A |
| THD / DC Injection Current |
< 3 % (linear load < 1.5 %) |
| DC Technical Specifications (PV) |
| Max. PV Access Power |
2200 W |
| Max. PV Input Power |
1600 W |
| Max. PV Input Voltage |
60 V |
| Start-up Voltage |
25 V |
| MPPT Voltage Range |
20 – 55 V |
| Full Load MPPT Voltage Range |
30 – 55 V |
| Rated PV Input Voltage |
42.5 V |
| Max. Input Short-Circuit Current |
27 + 27 A |
| Max. Operating PV Input Current |
18 + 18 A |
| No. of MPP Trackers / Strings per Tracker |
2 / 1 |
| Battery Technical Specification (Integrated) |
| Battery Chemistry |
LiFePO₄ |
| Battery Nominal Voltage |
51.2 V |
| Battery Nominal Energy |
2000 Wh |
| Max. Charging / Discharging Current |
25 A |
| Battery Operating Voltage |
44.8 – 57.6 V |
| Battery Cycle Life |
≥6000 (@25°C ±2°C, 0.5C/0.5C, 70% EOL) |
| Parallel Capability |
Supports up to 4 × AE-F2.0 extra batteries (max. 10 kWh) |
| USB Port Technical Specifications |
| USB-A Output |
2 ports, 5 V, 2.4 A, 12 W max per port |
| USB-C Output |
2 ports, 5 V, 3.0 A, 15 W max per port |
| Other Technical Specifications |
| Display |
Colorful Touch LCD + App + Battery LED (SOC, Alarm) |
| Communication Interfaces |
Wi-Fi, Bluetooth |
| Dimensions (W × D × H) |
450 × 210 × 312 mm |
| Weight (Approx.) |
26 kg |
| Operating Temperature Range |
–10 °C to +50 °C |
| Max. Operating Altitude |
2000 m |
| Relative Humidity |
0 – 95 % (non-condensing) |
| Safety / EMC Standards |
IEC62619, UN38.3, IEC/EN62109-1/2, IEC/EN61000-6-1/2/3/4 |
| Grid Regulation |
VDE4105, IEC61727/62116, CEI0-21, EN50549-1, G98, G99, etc. |
| Battery Certification |
UN38.3, IEC 62619 |
| Installation Style |
Floor-Mounted |
| Warranty |
10 years (battery) / 5 years (system) |

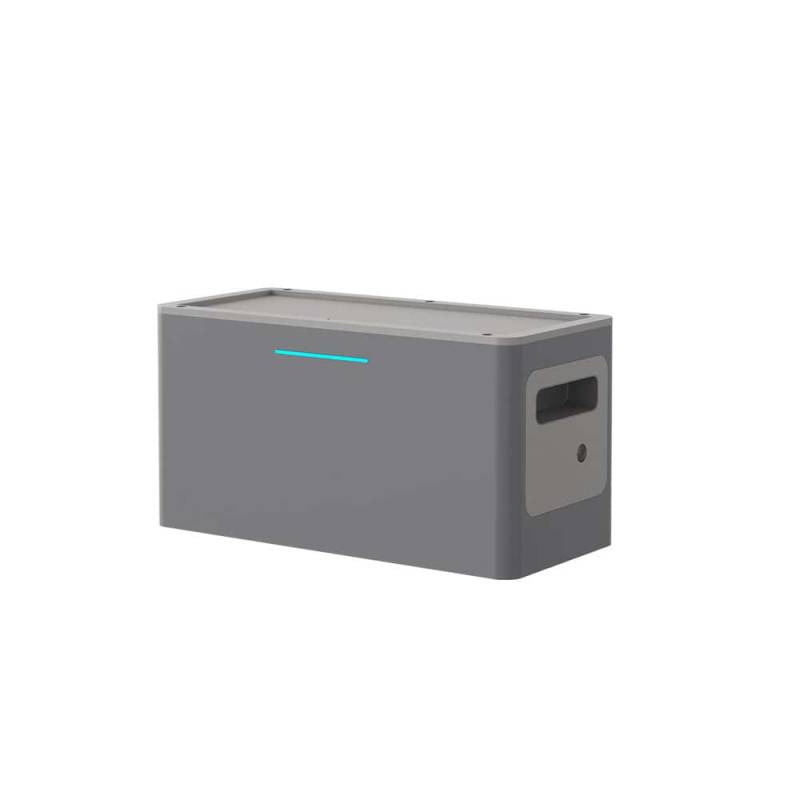

| Battery Model | AE-F2.0 |
|---|
| Battery Technical Specification |
| Battery Chemistry |
LiFePO₄ |
| Battery Nominal Voltage / Energy |
51.2 V / 2000 Wh |
| Max. Charging / Discharging Current |
50 A |
| Battery Operating Voltage |
44.8 – 57.6 V |
| Battery Cycle Life |
≥6000 (@25°C ±2°C, 0.5C/0.5C, 70% EOL) |
| Parallel Capability |
Up to 5 units |
| Other Technical Specification |
| Display |
LED (SOC, Alarm) |
| Communication Interfaces |
CAN2.0, LoRa |
| Dimensions (W × D × H) |
450 × 210 × 244 mm |
| Weight (Approx.) |
20 kg |
| Operating Temperature Range |
–10 °C to +50 °C |
| Max. Operating Altitude |
3000 m |
| Relative Humidity |
15 – 85 % (non-condensing) |
| Certification |
UN38.3, IEC 62619, CE |
| Installation Style |
Floor-Mounted |
| Warranty |
10 Years |
| Model: |
AE-F2.0 (EU) |
| Capacity: |
2000 Wh per Module |
| Parallel Operation: |
5 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
| Compatible with: |
AE-FS2.0 |
