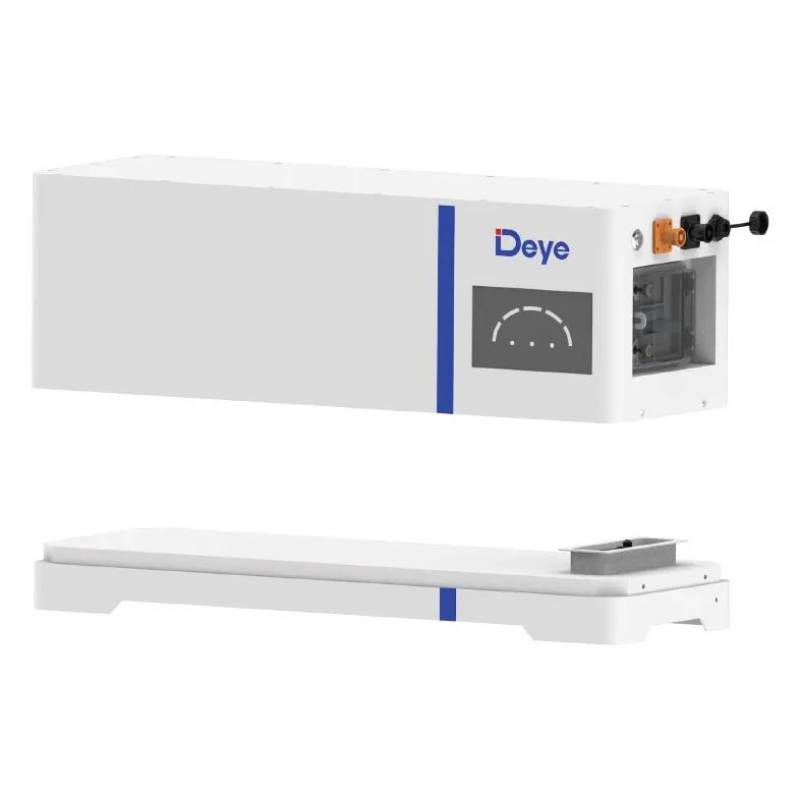

The Deye AI-W5.1-PDU1-B + Base is the essential control and connection module for the stackable AI-W5.1-B battery system. It handles all power and data communication between the inverter and battery tower, features an integrated LED status display, and includes the sturdy base plus 1.5 m connection cable – everything ready to go.
Key Features
Plug & Play Complete Set
PDU, base and 1.5 m cable included
Integrated LED Display
Real-time system status at a glance
Reliable Communication
Power & data interface between inverter and battery
Stable Base Included
Secure floor stand and perfect stack alignment
Fully Scalable
Supports 1–6 AI-W5.1-B modules
Residential & Commercial
Perfect for homes and businesses
10-Year Warranty
Same as the entire AI-W5.1-B system
Technical Specifications
| Parameter | Value |
|---|
| Model |
AI-W5.1-PDU1-B + Base |
| Function |
Power & Communication Hub with LED Status Display |
| Application |
Connects AI-W5.1-B modules to hybrid inverter |
| Package Includes |
PDU unit + Base + 1.5 m cable (AI-W5.1-PCable1500) |
| Communication |
RS485 / CAN (inverter-dependent) |
| Display |
LED indicators for system status & SOC |
| Installation |
Floor-mounted (base included) |
| Compatibility |

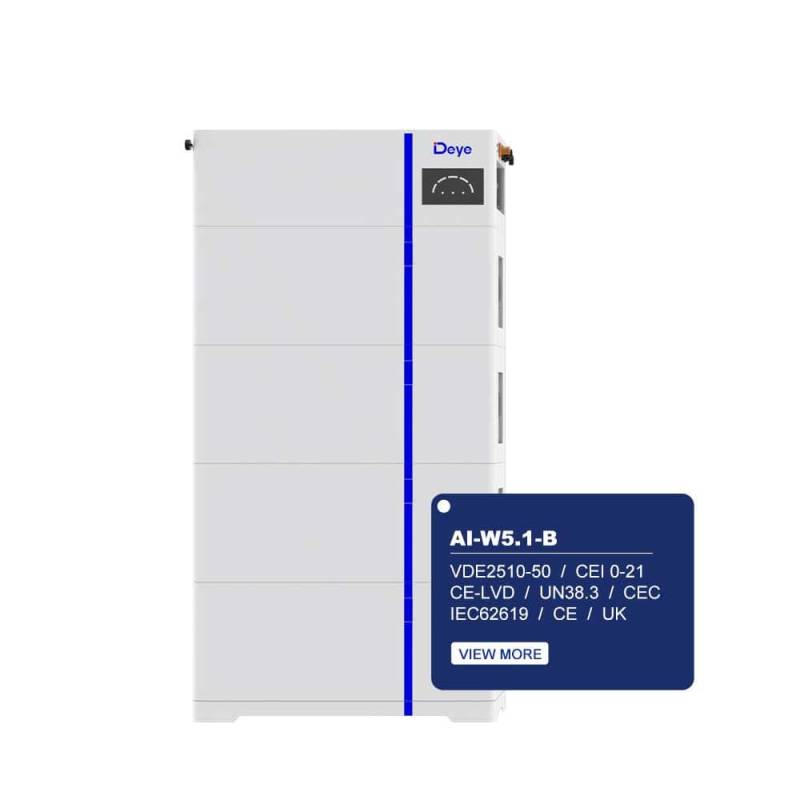

Deye AI-W5.1-B stackable battery (1–6 modules) |
| Certification |
UN38.3, CE |
| Warranty |
10 years |
Deye AI-W5.1-PDU1-B + Base
Complete connection & control module · LED display · 1.5 m cable · 10-year warranty
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye AI-W5.1-PDU1-B + Base |
| Function |
Power & communication hub |
| Display |
Integrated LED status display |
| Included |
PDU + base + 1.5 m cable |
| Communication |
RS485 / CAN |
| Compatibility |
AI-W5.1-B (1–6 modules) |
| Installation |
Floor-mounted with base |
| Warranty |
10 years |
| Model PDU: |
AI-W5.1-PDU1-B |
| Built-in Circuit Breaker: |
250A 2P, 1000Vdc |
| Weight: |
15kg |
| Model Base: |
AI-W5.1-Base |
| Weight Base: |
6.5kg |
| Total Weight: |
21.5kg |
| Compatible with: |
AI-W5.1 |
