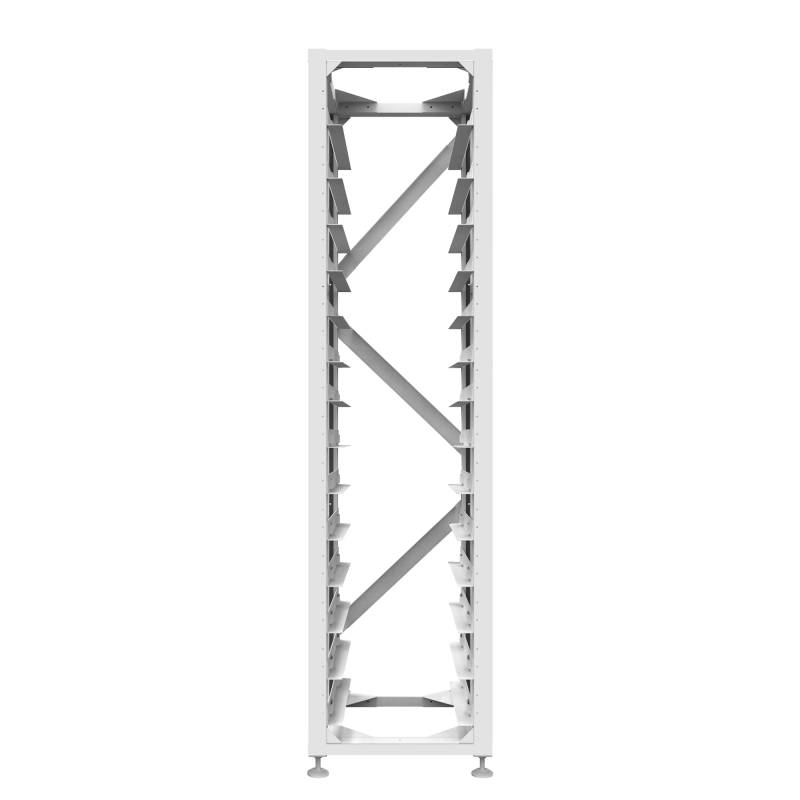

The Deye BOS-A-Rack11 is a professional 19-inch high-voltage battery rack that holds up to 10 BOS-G series battery modules (51.2 V each) plus one high-voltage cluster control box. With its compact footprint and only 47 kg empty weight, it offers the perfect balance between capacity and ease of installation – ideal for residential and light-commercial energy storage systems.
Key Features
19-inch Standard Rack Fits perfectly in server rooms and technical cabinets

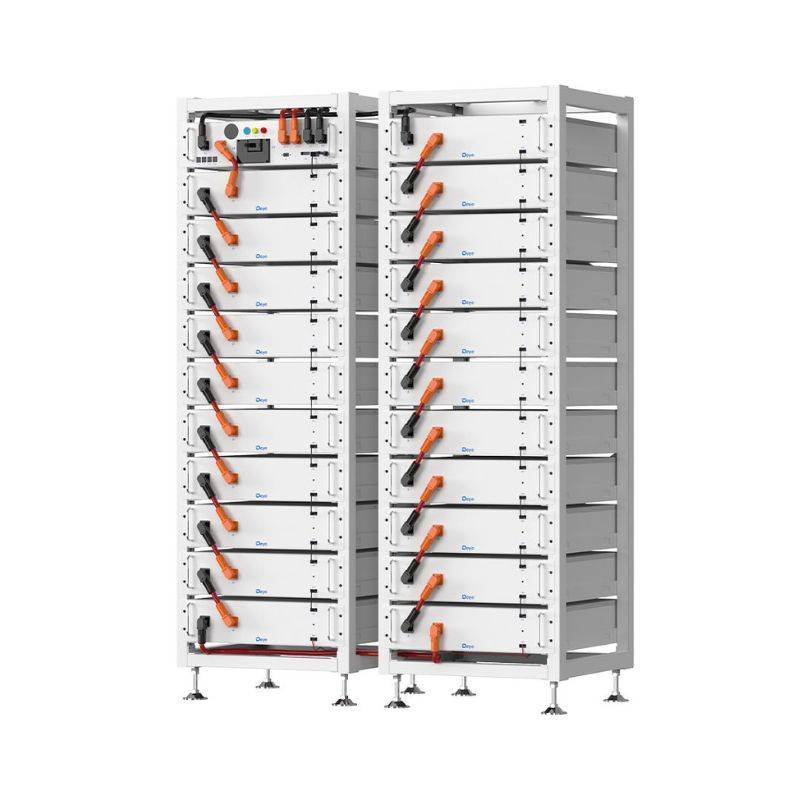

Up to 10 Batteries Total capacity up to 51.2 kWh (with 5.12 kWh modules)
Integrated Control Slot Space for 1 high-voltage cluster control box
Compact & Light Only 610 × 610 × 1900 mm – 47 kg empty
Full BOS Compatibility Seamless integration with Deye high-voltage systems
Quick Installation Pre-assembled rack, easy module insertion
Technical Specifications
| Parameter | Value |
|---|
| Model & Type |
- Model: BOS-A-Rack11
- Type: Standard 19-inch rack
|
| Capacity |
- Up to 10 × BOS-G battery modules
- 1 × High-voltage cluster control box
|
| Physical |
- Dimensions (W × D × H): 610 × 610 × 1900 mm
- Weight (empty): ≈47 kg
- Full compatibility with Deye BOS-G system
|
Deye BOS-A-Rack11 – professional 19-inch rack for up to 51.2 kWh high-voltage storage, compact, light and 100 % BOS compatible.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye BOS-A-Rack11 19-inch Battery Rack |
| Model |
BOS-A-Rack11 |
| Rack Type |
Standard 19-inch |
| Battery Capacity |
Up to 10 battery modules |
| Cluster Control Box |
1 × High-voltage control box slot |
| Dimensions (W × D × H) |
610 × 610 × 1900 mm |
| Weight (empty) |
≈47 kg |
| System Compatibility |
Full BOS-G series compatible |
| Compatible with: |
BOS-A Series |
