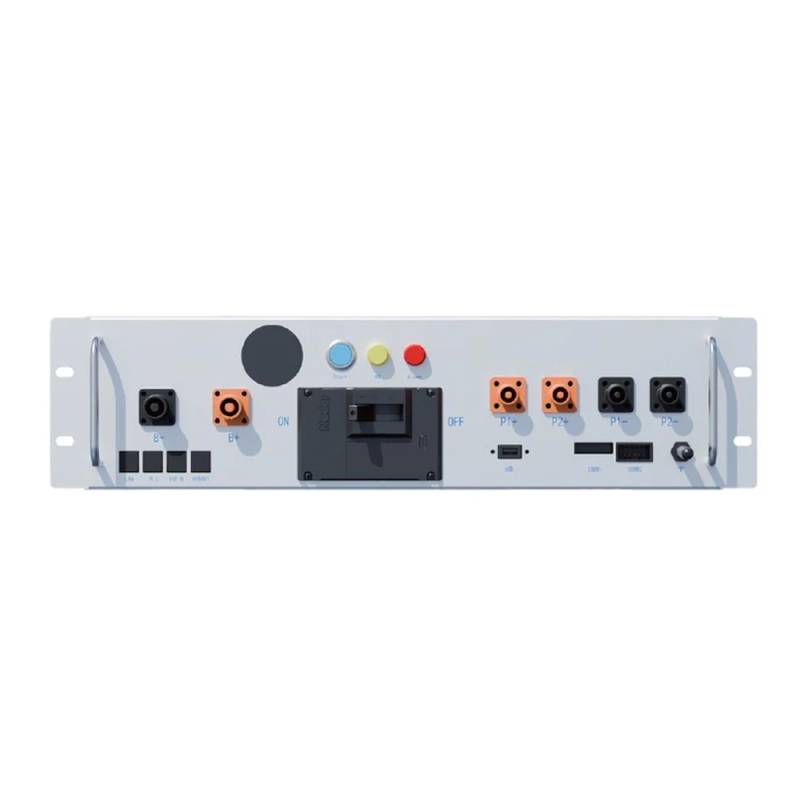

The Deye BOS-A-PDU-2 is the central Power Distribution Unit for the entire BOS-A high-voltage battery series. It provides control, monitoring, protection and communication – mandatory for safe parallel operation, maximum battery life and top system performance.
Key Features
Centralized Control & Monitoring
Real-time voltage, current, temperature & status of every module
Intelligent Battery Management
Optimized charge/discharge algorithms for longest possible lifespan
Comprehensive Protection
Multi-level safeguards against overcharge, deep discharge, overcurrent, short-circuit & overheating
Seamless Integration
Perfectly matched to BOS-A modules and all Deye inverters
Parallel Operation Support

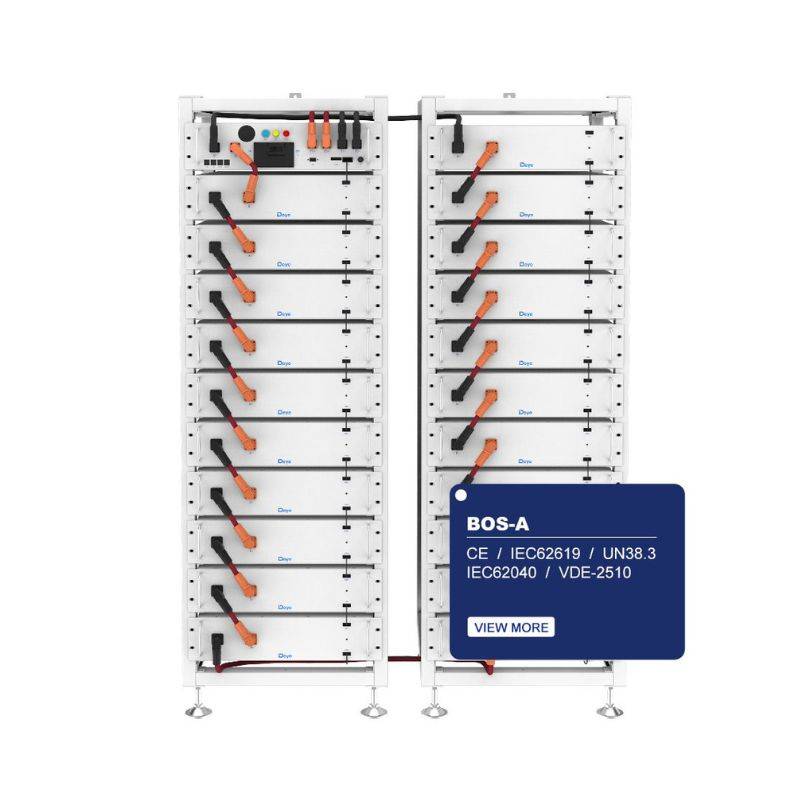

Balanced control of multiple modules for easy capacity scaling
Communication Interfaces
Connection to inverters and higher-level management systems
Easy Installation & Configuration
Fast and straightforward setup of the complete storage system
Technical Specifications
| Category | Details |
|---|
| General Data |
- Model: BOS-A-PDU-2
- DC Input Voltage: 200 – 1000 V DC
- Max. Charge/Discharge Current: 160 A
- Internal Operating Voltage: 12 V DC (±2 %) at 4.15 A
|
| Protection & Environment |
- Protection: Overcharge, deep discharge, overcurrent, short-circuit, overheating
- Ingress Protection: IP20
- Operating Temperature: –20 °C to +65 °C
|
| Mechanical Data |
- Dimensions (W × H × D): 632 × 572 × 142.2 mm
- Weight: 21 kg
|
Deye BOS-A-PDU-2 – Power Distribution Unit
200–1000 V · 160 A · Parallel capable · Full protection · Plug-&-Play with BOS-A modules
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye BOS-A-PDU-2 Power Distribution Unit |
| Model |
BOS-A-PDU-2 |
| DC Input Voltage |
200 – 1000 V DC |
| Max. Charge/Discharge Current |
160 A |
| Internal Operating Voltage |
12 V DC (±2 %) at 4.15 A |
| Operating Temperature |
–20 °C to +65 °C |
| Ingress Protection |
IP20 |
| Dimensions (W × H × D) |
632 × 572 × 142.2 mm |
| Weight |
21 kg |
| Model PDU: |
BOS-A-PDU-2 |
| Weight: |
21kg |
| Compatible with: |
BOS-A Series |
