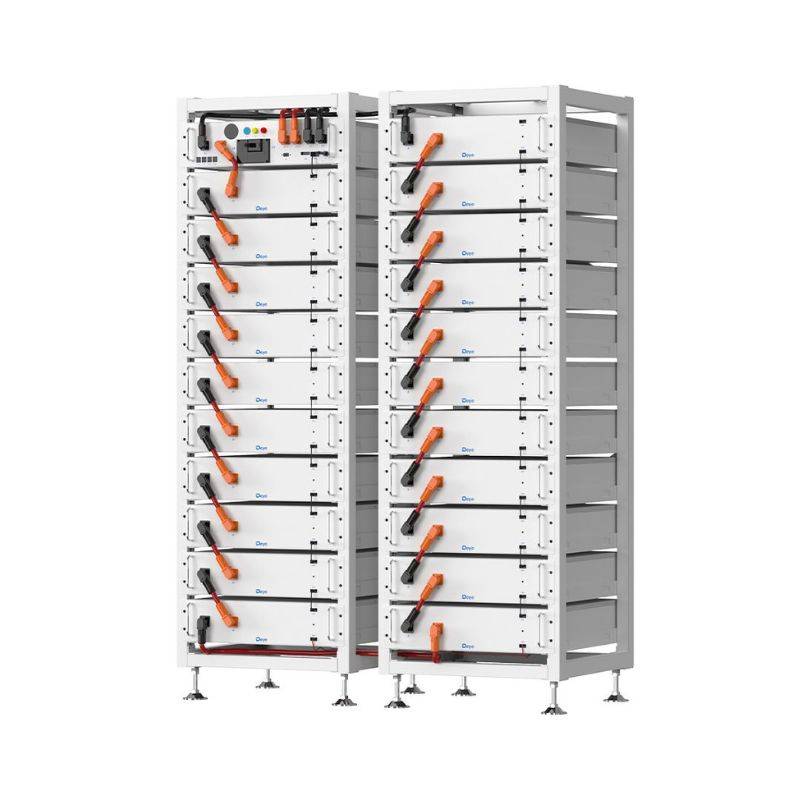

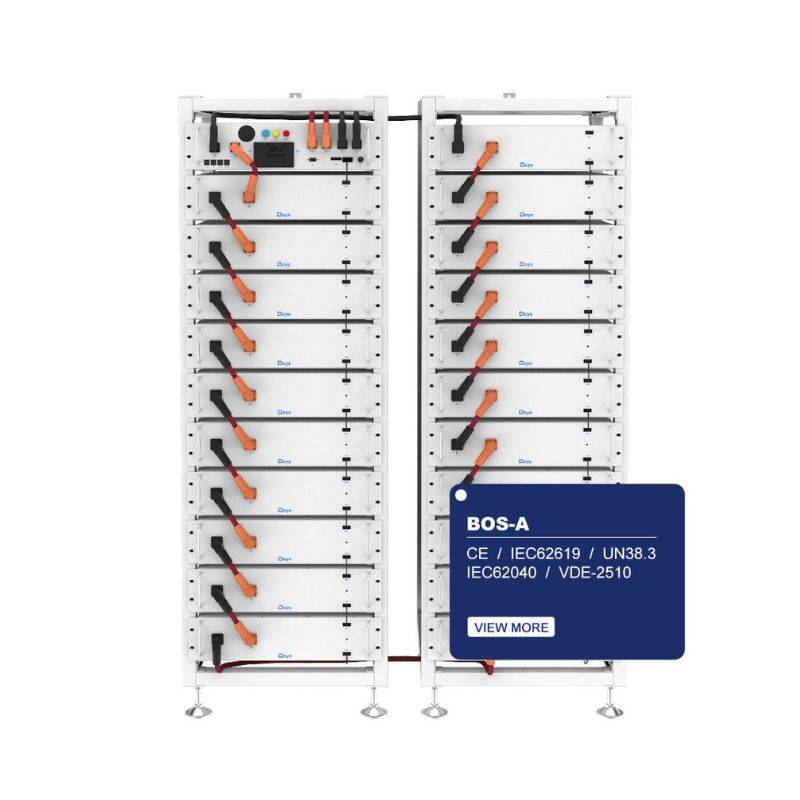

The Deye BOS-A is a high-performance embedded LiFePO₄ battery module designed for demanding commercial energy storage. With 7.68 kWh per module, >6000 cycles, intelligent BMS, cloud monitoring and up to 13 modules in series, it offers unmatched flexibility, safety and longevity.
Key Features
High Performance
7.68 kWh per module, >6000 cycles
Intelligent Management
Cloud-based real-time monitoring & optimization
Flexible Configuration
Up to 13 modules in series, scalable to 161 kWh
Effortless Installation
Only 70 kg per module, rack-mount design
Safety First
Intelligent BMS with full protection against over-charge, over-discharge & short circuit
Robust Design
IP20, wide operating temperature –20 to +55 °C
Warranty Assurance
10-year full replacement warranty up to 6000 cycles
Technical Specifications
| Parameter | 7 Modules | 13 Modules | 21 Modules |
|---|
| Cell Chemistry |
LiFePO₄ |
| Energy per Module |
7.68 kWh |
| Nominal Voltage / Capacity per Module |
38.4 V / 200 Ah |
| System Nominal Voltage |
268.8 V |
499.2 V |
806.4 V |
| System Operating Voltage Range |
235.2–306.6 V |
436.8–569.4 V |
705.6–920.7 V |
| Total System Energy |
53.76 kWh |
99.84 kWh |
161.28 kWh |
| Usable Energy (90 % DoD) |
48.38 kWh |
89.85 kWh |
145.15 kWh |
| Charge/Discharge Current (rec. / max.) |
100 A / 160 A |
| Operating Temperature |
Charge: 0 to +55 °C / Discharge: –20 to +55 °C |
| Ingress Protection |
IP20 |
| Weight per Module |
≈70 kg |
| Total System Weight (approx.) |
530 kg |
985 kg |
1590 kg |
| Cycle Life |
≥6000 (25 °C, 0.5C/0.5C, 70 % EOL) |
| Warranty |
10 years |
| Communication / Certification |
CAN2.0 / CE, IEC62619, UN38.3, VDE-2510 |
Deye BOS-A – High-Voltage LiFePO₄ Storage
7.68 kWh · 38.4 V · Up to 161 kWh · >6000 cycles · 10-year warranty · Cloud monitoring
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | 7 Modules | 13 Modules | 21 Modules |
|---|
| Deye BOS-A High-Voltage LiFePO₄ Battery System |
| Cell Chemistry |
LiFePO₄ |
| Energy per Module |
7.68 kWh |
| Nominal Voltage / Capacity |
38.4 V / 200 Ah |
| System Nominal Voltage |
268.8 V |
499.2 V |
806.4 V |
| System Operating Voltage |
235.2–306.6 V |
436.8–569.4 V |
705.6–920.7 V |
| System Energy |
53.76 kWh |
99.84 kWh |
161.28 kWh |
| Usable Energy (90 % DoD) |
48.38 kWh |
89.85 kWh |
145.15 kWh |
| Charge/Discharge Current (rec. / max.) |
100 A / 160 A |
| Operating Temperature |
Charge 0 to +55 °C / Discharge –20 to +55 °C |
| Ingress Protection |
IP20 |
| Weight per Module |
≈70 kg |
| Total System Weight (approx.) |
530 kg |
985 kg |
1590 kg |
| Cycle Life |
≥6000 (25 °C, 0.5C) |
| Warranty |
10 years |
| Communication |
CAN2.0 |
| Model: |
BOS-A-Pack |
| Capacity: |
7680 Wh per Module |
| Parallel Operation: |
13 in Series |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
| Compatible with: |
BOS-A Series |
