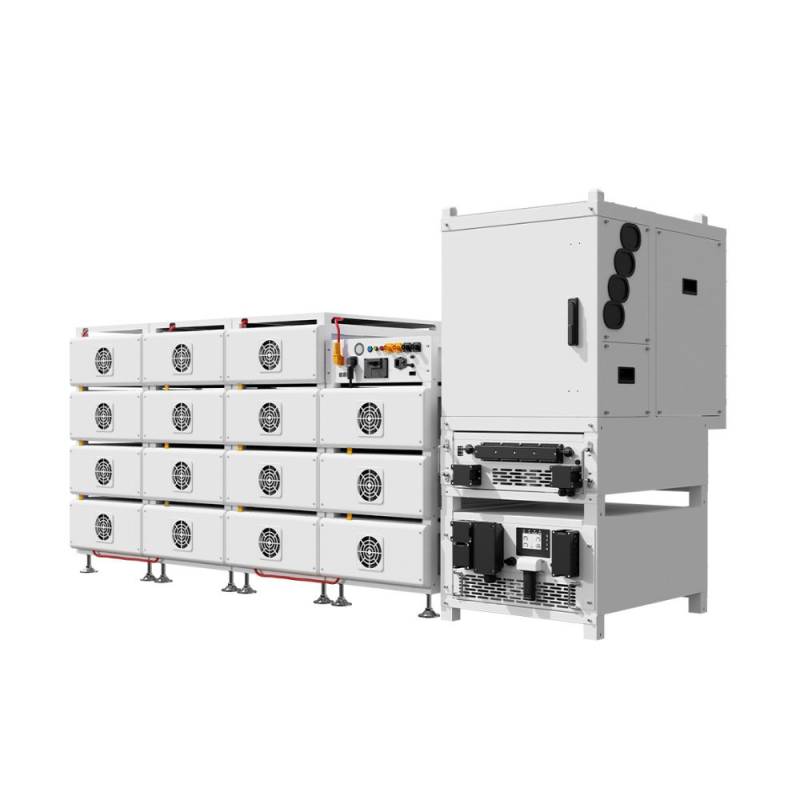

The Deye SUN-PCS (Power Conversion System) module – available as 100 kW and 125 kW versions – is the heart of Deye’s commercial & industrial energy storage systems. It performs bidirectional conversion between high-voltage batteries and the AC grid with up to 98.5 % efficiency and can be paralleled up to 2.5 MW. Perfectly suited for peak-shaving, self-consumption optimisation, frequency regulation and off-grid applications.
Key Features
100 kW or 125 kW per Module
220 A charge/discharge current
Peak Efficiency 98.5 %
Euro efficiency 97.8 %
Parallel up to 20 Units
Total system power up to 2.5 MW
110 % Continuous Overload
170 % peak power for short periods
Full Grid Services
Reactive power · zero export · TOU · VSG
IP65 Outdoor Cabinet
Compact 543 × 775 × 310 mm
Smart Connectivity
LCD + Wi-Fi + RS485 + CAN + meter interface
Technical Specifications
| Category | Details |
|---|
| Power & Performance |
- Model: SUN-100K/125K-PCSL01HP3
- Rated Power: 100 kW or 125 kW
- Max. Charge/Discharge Current: 220 A
- Peak Efficiency: 98.5 % · Euro Efficiency: 97.8 %
- Overload Capability: 110 % continuous · 170 % short-term
- Parallel Capacity: up to 20 units → 2.5 MW total
|
| Grid Interaction |
- Grid Frequency: 45 – 65 Hz
- Power Factor: –1 to +1 (fully adjustable)
- THDi: < 3 % at rated power
- Supports reactive power, zero-export, VSG, frequency regulation
|
| Protection & Safety |
- DC residual current detection
- Optional arc-fault circuit interrupter (AFCI)
- Insulation monitoring · short-circuit protection
- Anti-islanding · over-/undervoltage protection
|
| Physical & Environmental |
- Dimensions (W×H×D): 543 × 775 × 310 mm
- Weight: approx. 75 kg
- Protection Rating: IP65 (outdoor)
- Operating Temperature: –25 °C to +60 °C (derating >45 °C)
- Cooling: Intelligent air cooling
|
| Communication & Monitoring |

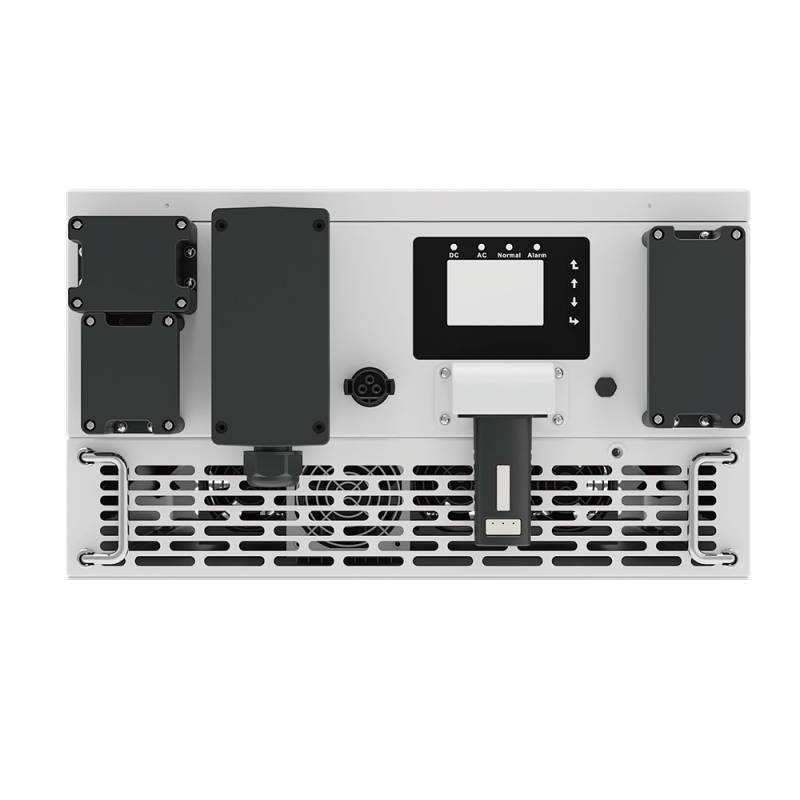

- Display: LCD + LED
- Interfaces: RS485, CAN, Wi-Fi, meter interface
- Remote monitoring via Deye Cloud
|
Deye SUN-PCS – 100 kW / 125 kW Power Conversion System
98.5 % efficiency · up to 2.5 MW parallel · IP65 · full grid services
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye SUN-100K/125K-PCSL01HP3 Power Conversion System |
| Model |
SUN-100K/125K-PCSL01HP3 |
| Rated Power |
100 kW or 125 kW |
| Max. Units in Parallel |
Up to 20 units → 2.5 MW total |
| Max. Charge/Discharge Current |
220 A |
| Overload Capability |
110 % continuous · 170 % peak (short-term) |
| Peak Efficiency |
98.5 % |
| European Efficiency |
97.8 % |
| Grid Frequency |
45 – 65 Hz |
| Power Factor |
–1 to +1 (fully adjustable) |
| Total Harmonic Distortion (THDi) |
< 3 % at rated power |
| Display & Interfaces |
LCD + LED, RS485, CAN, Wi-Fi, Meter interface |
| Protection Rating |
IP65 (outdoor) |
| Dimensions (W × H × D) |
543 × 775 × 310 mm |
| Weight (approx.) |
75 kg |
| Operating Temperature |
–25 °C to +60 °C (>45 °C derating) |
| Cooling |
Intelligent forced air cooling |
| Safety Features |
DC RCD, optional AFCI, insulation monitoring, anti-islanding, short-circuit protection |
| Variation: |
SUN-125K-PCSL01HP3 |
| More Information: |
on Enquiry |

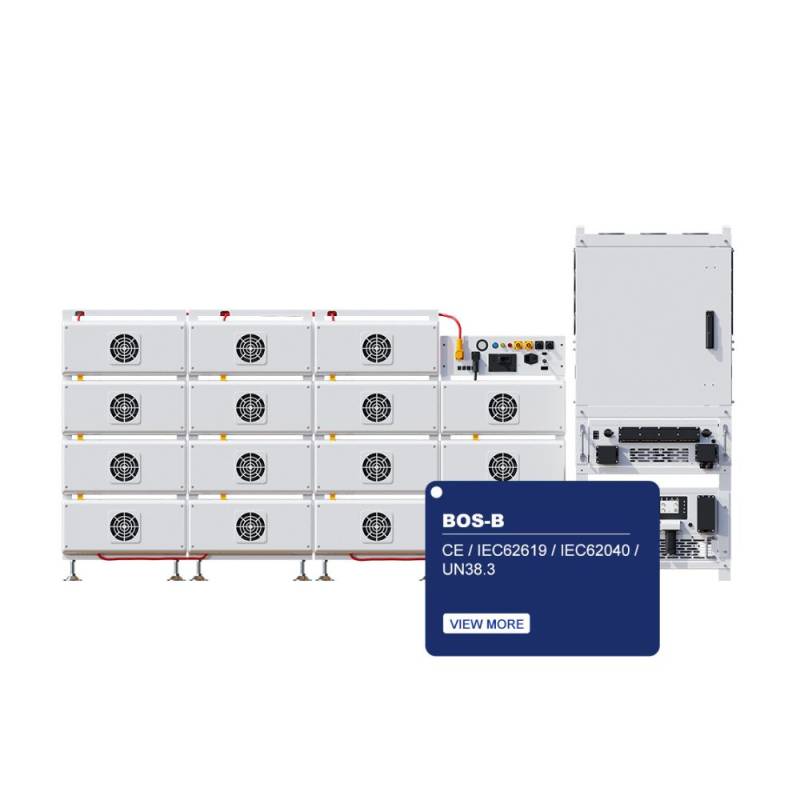

| Compatible with: |
BOS-B Series |
