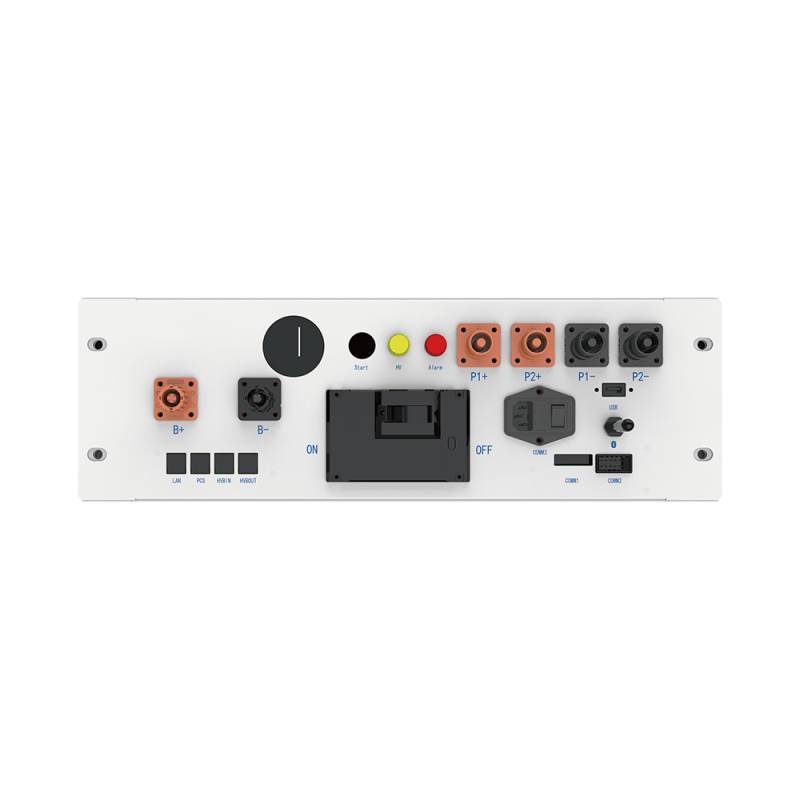

The Deye BOS-B-PDU-2 is a state-of-the-art high-voltage Battery Management System and the central control unit for the entire BOS-B series. Supporting 200–1000 V and up to 175 A charge/discharge current, active cooling, robust metal housing and a full installation kit included, it is the perfect choice for large-scale commercial & industrial energy storage projects.
Key Features
200–1000 V & 175 A
Perfect for large high-voltage systems
6000 Cycles
Extremely long service life
Active Cooling
Safe operation even at full load
Full Communication
USB · Bluetooth · Ethernet · 3× CAN
Metal Housing & Display
Robust design with built-in screen
Complete Installation Kit
All cables & accessories included
Technical Specifications
| Category | Details |
|---|
| General & Performance |
- Model: BOS-B-PDU-2
- Battery Type: High-voltage LFP
- Life Cycle: 6000 cycles
- Operating Voltage Range: 200–1000 V
- Discharge Cutoff Voltage: 200 V
- Max. Charging Current: 175 A
- Recommended Discharge Current: 140 A
- Max. Discharge Cutoff Current: 175 A
- Warranty: 10 years
|
| Mechanical & Cooling |
- Terminal Type: Proprietary Deye terminals
- Cooling Method: Active (fans)
- Enclosure Material: Metal
- Dimensions (W×H×D): 797 × 526 × 275 mm
- Weight: 20 kg
|
| Temperature Ranges |
- Recommended Charging Temp.: 0 °C to +55 °C
- Recommended Discharging Temp.: –20 °C to +55 °C
- Recommended Storage Temp.: 0 °C to +35 °C
|
| Package Contents |
- Control module
- 4 lower covers, 3 upper covers, 16 cover feet
- 1 communication cable
- 1× 180 mm negative power cord, 1 auxiliary power supply cable, 1 positive power cord
- 1 emergency shutdown interface
- 1 PCS positive cable, 1 PCS negative cable
- 3× 1000 mm inter-rack power cables
- 1 inverter communication cable
- 3× 1000 mm inter-rack communication cables
- 1 optional Wi-Fi antenna
- 4 grounding cables
- 1 terminal resistor 120 Ω
- PCS terminal connectors, 16 mounting screws
|
Deye BOS-B-PDU-2 – High-Voltage Battery Management System
200–1000 V · 175 A · 6000 cycles · Active cooling · Full installation kit · 10-year warranty
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye BOS-B-PDU-2 High-Voltage BMS |
| Model |
BOS-B-PDU-2 |
| Battery Type |
High-voltage LFP |
| Life Cycle |
6000 cycles |
| Operating Voltage Range |
200–1000 V |
| Discharge Cutoff Voltage |
200 V |
| Max. Charging Current |
175 A |
| Recommended Discharge Current |
140 A |
| Max. Discharge Cutoff Current |
175 A |
| Terminal Type |
Proprietary Deye terminals |
| Cooling Method |
Active (fans) |
| Recommended Charging Temp. |
0 °C to +55 °C |
| Recommended Discharging Temp. |
–20 °C to +55 °C |
| Recommended Storage Temp. |
0 °C to +35 °C |
| Enclosure Material |
Metal |
| Dimensions (W×H×D) |
797 × 526 × 275 mm |
| Weight |
20 kg |
| Warranty |
10 years |
| Package Contents |
Control module · 4 lower + 3 upper covers · 16 cover feet · all power & comm cables · emergency shutdown interface · optional Wi-Fi antenna · grounding cables · 120 Ω resistor · PCS connectors · 16 screws – fully installation-ready |
| Model PDU: |
BOS-B-PDU-2 |
| Weight: |
20kg |
| Compatible with: |
BOS-B Series |
