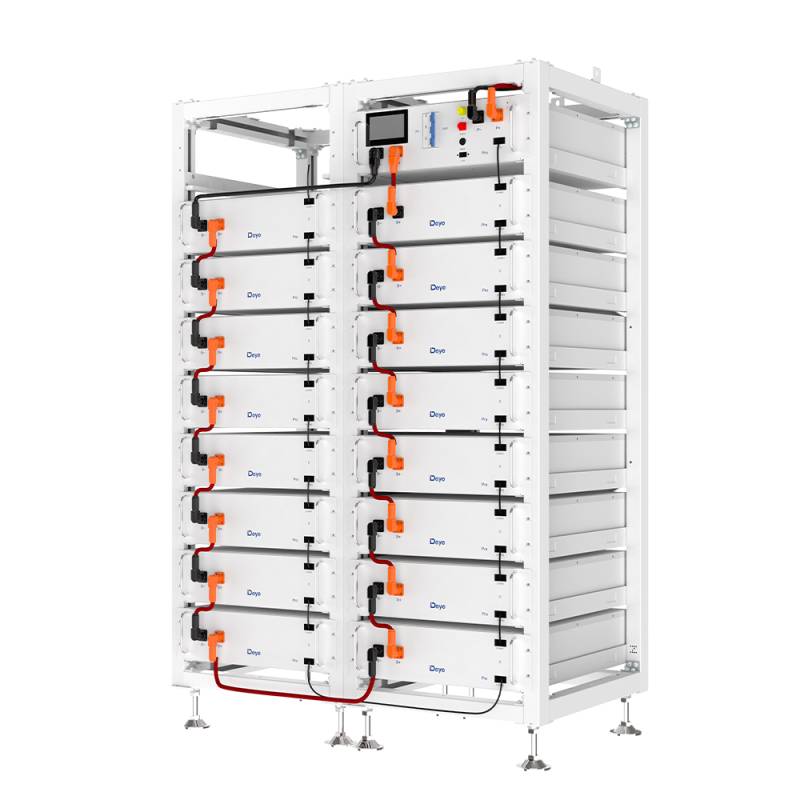

The Deye BOS-G-PDU-2 (HVB750V/100A-EU) is a professional high-voltage Power Distribution Unit specifically developed for the BOS-G Pro battery system and Deye hybrid inverters. It reliably manages up to 750 V DC (1000 V capable), 100 A continuous current and offers comprehensive monitoring, protection and communication – the perfect link between high-voltage battery banks and the inverter.
Key Features
120 – 750 V DC (1000 V capable)
100 A continuous · 125 A short-term
Full Protection Suite
Over-/undervoltage, overcurrent, overtemperature, short-circuit
Real-Time Monitoring
Voltage, current & temperature per battery module
Perfect Deye Integration
CAN 2.0 + RS485 · 100 % compatible with all Deye HV inverters
LED Status Display
Yellow = HV active · Red = alarm
Industrial Temperature Range
–20 °C to +65 °C continuous operation
19" Rack Design
440 × 570 × 150 mm · only 19 kg · incl. complete cable set
Technical Specifications
| Category | Details |
|---|
| Electrical Data |
- Model: BOS-G-PDU-2 (HVB750V/100A-EU)
- Operating Voltage: 120 – 750 V DC (1000 V capable)
- Nominal Current: 100 A (charge & discharge)
- Max. Current (short-term): 125 A
- Auxiliary Power: 12 V ±2 % / 4.15 A
|
| Protection & Monitoring |
- Overvoltage, undervoltage, overcurrent, overtemperature
- Short-circuit protection & pre-charge function
- Real-time monitoring of voltage, current, temperature
- LED indicators (yellow = HV on, red = alarm)
|
| Communication & Compatibility |
- Communication: CAN 2.0 + RS485
- Fully compatible with Deye high-voltage inverters
- Designed for BOS-G Pro battery series
|
| Physical & Environmental |
- Dimensions (W×D×H): 440 × 570 × 150 mm (3U)
- Weight: 19 kg
- Protection Class: IP20 (indoor)
- Operating Temperature: –20 °C to +65 °C
- Mounting: 19" rack or wall mounting
|
| Scope of Delivery |
- 120 Ω CAN termination resistor
- 140 mm communication cable
- 220 mm + 2.1 m power cables (EU)
- Power plug & mounting accessories
|
Deye BOS-G-PDU-2 (HVB750V/100A-EU)
120–750 V DC · 100 A continuous · full Deye integration · complete cable set included
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye BOS-G-PDU-2 (HVB750V/100A-EU) |
| Model |
HVB750V/100A-EU |
| Operating Voltage Range |
120 – 750 V DC (1000 V capable) |
| Nominal Charge/Discharge Current |
100 A |
| Max. Charge/Discharge Current (short-term) |
125 A |
| Auxiliary Power Input |
12 V ±2 % / 4.15 A |
| Operating Temperature |
–20 °C to +65 °C |
| Protection Rating |
IP20 |
| Dimensions (W×D×H) |
440 × 570 × 150 mm (3U) |
| Weight |
19 kg |
| Communication |
CAN 2.0 + RS485 |
| Compatibility |
BOS-G Pro battery + all Deye HV inverters |
| Scope of Delivery |
- 120 Ω termination resistor
- 140 mm communication cable
- 220 mm + 2.1 m power cables (EU)
- Power plug & mounting kit
|
| Model PDU: |
BOS-G-PDU-2 |
| Weight: |
19kg |
| Compatible with: |
BOS-G Series |
