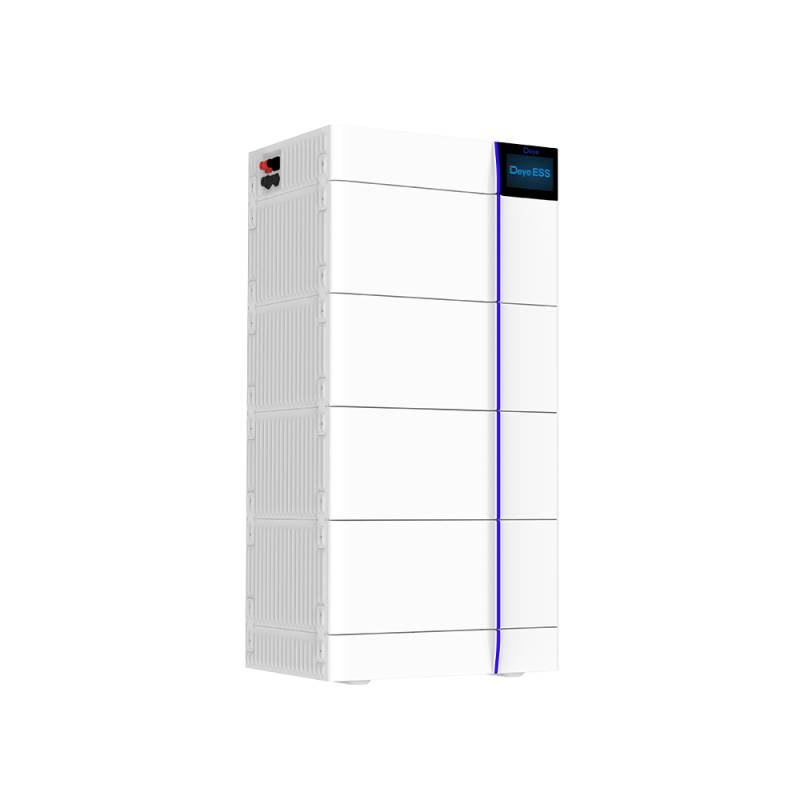

The Deye GB-L-PRO is a premium high-voltage LiFePO₄ modular battery system delivering 8 to 24 kWh usable energy in a sleek, floor-standing tower. Built around 4 kWh plug-and-play modules stacked in series (no messy parallel cabling), it offers ultra-high efficiency, IP65 protection, and intelligent monitoring – perfect for modern homes and small commercial installations.
Key Advantages
True High-Voltage Design 204.8–614.4 V – no parallel losses, >96 % round-trip efficiency
Fully Modular 2–6 × 4 kWh modules (8 / 12 / 16 / 20 / 24 kWh)
IP65 All-Weather Indoor & outdoor installation
Smart LCD + Remote Monitoring Real-time SOC, voltage, power + OTA updates
Active Safety Built-in fire protection, explosion relief, aerosol suppressant
10-Year Warranty ≥6000 cycles @ 70 % EOL
System Overview
| Model | Modules | Nominal Voltage | Usable Energy | Height / Weight |
|---|
| GB-L8 PRO |
2 |
204.8 V |
7.2 kWh |
650 mm / 97 kg |
| GB-L12 PRO |
3 |
307.2 V |
10.8 kWh |
870 mm / 136 kg |
| GB-L16 PRO |
4 |
409.6 V |
14.4 kWh |
1090 mm / 175 kg |
| GB-L20 PRO |
5 |
512 V |
18 kWh |
1310 mm / 214 kg |
| GB-L24 PRO |
6 |
614.4 V |
21.6 kWh |
1530 mm / 253 kg |
Deye GB-L-PRO – the intelligent high-voltage LiFePO₄ tower: 8–24 kWh, IP65, zero cabling, 10-year peace of mind.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Deye GB-L-PRO High-Voltage Battery System |
| Cell Chemistry |
LiFePO₄ (LFP) |
| Module Energy / Voltage |
4 kWh / 102.4 V |
| System Models |
GB-L8 / 12 / 16 / 20 / 24 PRO (2–6 modules) |
| Usable Energy |
7.2 – 21.6 kWh (90 % DoD) |
| System Voltage |
204.8 – 614.4 V |
| Nominal / Peak Current |
40 A / 50 A (2 min) |
| Operating Temperature |
Charge –10…55 °C / Discharge –20…55 °C |
| Protection / Installation |
IP65 / Floor standing |
| Cycle Life |
≥6000 @ 25 °C, 0.5C, 70 % EOL |
| Warranty / Certification |
10 years / CE, IEC62619, UN38.3 |

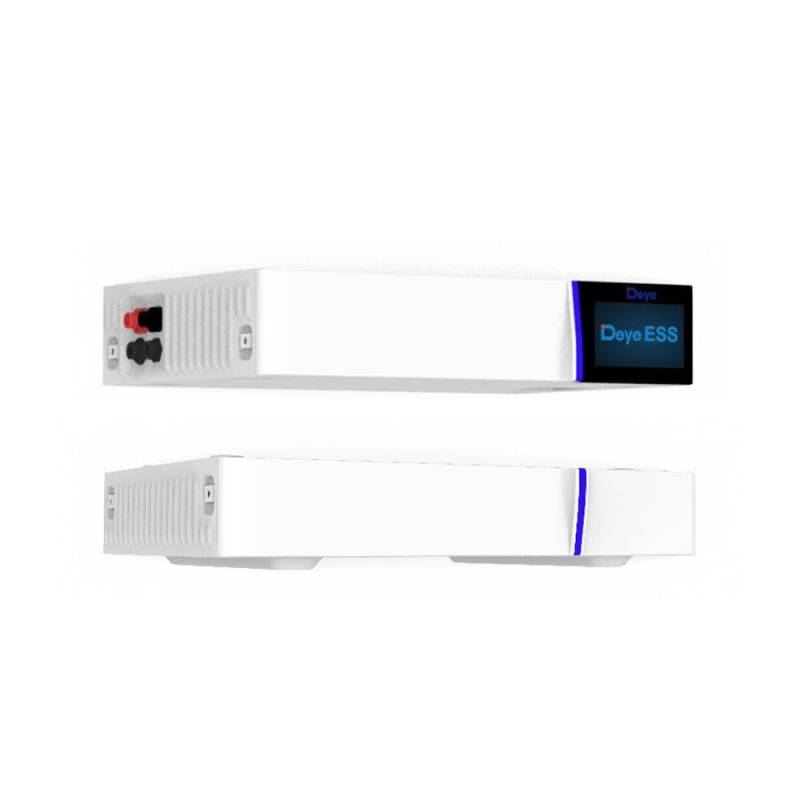

| Model: |
GB-LM4.0-PRO |
| Capacity: |
4000 Wh per Module |
| Parallel Operation: |
6 pcs. in Series |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
| Model PDU: |
GB-LBS-PRO |
| Weight: |
12kg |
| Model Base: |
GB-LBase |
| Weight Base: |
7kg |
| Total Weight: |
19kg |
| Compatible with: |
GB-L Pro |
