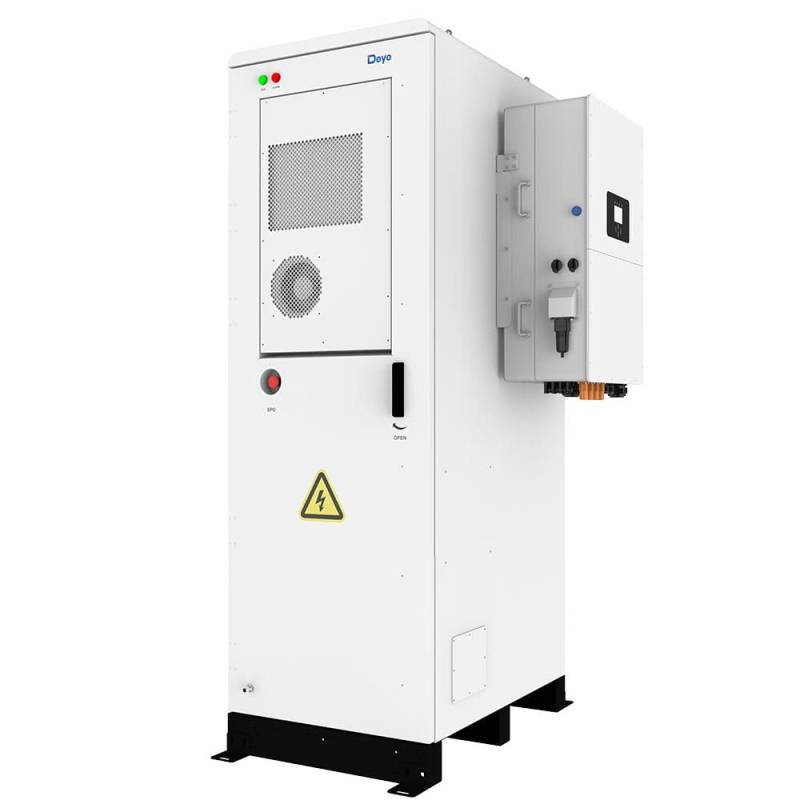

The Deye GE-F60 is a compact, high-safety commercial & industrial energy storage system with 61.44 kWh LiFePO₄ capacity and integrated hybrid inverter. Designed for maximum safety and flexibility, it offers black start, aerosol fire suppression, and scalability up to 3.6 MWh – perfect for small to medium-sized businesses.
Key Features
Top-Tier Safety
Aerosol fire suppression · smoke, gas & temperature detection
61.44 kWh LFP Storage
12 × 5.12 kWh modules · ≥6000 cycles @ 90 % DoD
Black Start & Redundancy
Seamless off-grid operation · redundant design
Scalable up to 3.6 MWh
Future-proof modular expansion
IP55 Outdoor Cabinet
–30 °C to +60 °C operation
All-in-One Design
Integrated EMS, BMS & hybrid inverter
Technical Specifications
| Category | Details |
|---|
| Battery System |
- Chemistry: LiFePO₄ (LFP)
- Configuration: 12 × 5.12 kWh modules
- Total Energy: 61.44 kWh
- Usable Energy (90 % DoD): 55.29 kWh
- Nominal Voltage: 614.4 V
- Operating Voltage: 480 – 700 V
- Nominal Current: 100 A · Peak (2 min): 125 A
- Cycle Life: ≥ 6000 @ 0.5C, 70 % EOL
|
| Safety & Protection |
- Aerosol fire suppression system
- Smoke, combustible gas & temperature detection
- Active exhaust & fire alarm
- Five-level protection architecture
|
| Physical & Environmental |
- Dimensions (W×D×H): 783 × 1059 × 2235 mm
- Weight: approx. 1070 kg
- IP Rating: IP55 (outdoor)
- Operating Temperature: –30 °C to +60 °C (>45 °C derating)
- Humidity: 5 – 85 % RH
- Max. Altitude: 2000 m
|
| General |
- Installation: Floor-mounted
- Communication: CAN2.0, RS485
- Scalability: Up to 3.6 MWh
- Warranty: 10 years
- Certifications: UN38.3, CB, CE, CEC, IEC 62040
|
Deye GE-F60 – 61.44 kWh compact C&I energy storage system
Aerosol fire suppression · black start · IP55 · scalable to 3.6 MWh · 10-year warranty
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye GE-F60 Commercial & Industrial ESS |
| Model |
GE-F60 |
| Battery Chemistry |
LiFePO₄ (LFP) |
| Module Energy / Voltage |
5.12 kWh / 51.2 V (100 Ah) |
| Number of Modules |
12 in series |
| System Nominal Voltage |
614.4 V |
| System Operating Voltage |
480 – 700 V |
| Total Energy |
61.44 kWh |
| Usable Energy (90 % DoD) |
55.29 kWh |
| Rated DC Power |
61.44 kW |
| Nominal Charge/Discharge Current |
100 A |
| Peak Discharge Current (2 min) |
125 A |
| Cycle Life |
≥ 6000 (25 °C ±2 °C, 0.5C, 70 % EOL) |
| Dimensions (W×D×H) |
783 × 1059 × 2235 mm |
| Weight |
1070 kg |
| IP Rating |
IP55 |
| Operating Temperature |
–30 °C to +60 °C (>45 °C derating) |
| Communication |
CAN2.0, RS485 |
| Scalability |
Up to 3.6 MWh |
| Warranty |
10 years |
| Certifications |
UN38.3, CB, CE, CEC, IEC 62040 |
| Model: |
GE-F60 (EU) |
| Capacity: |
55290 Wh |
| Parallel Operation: |
6 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
