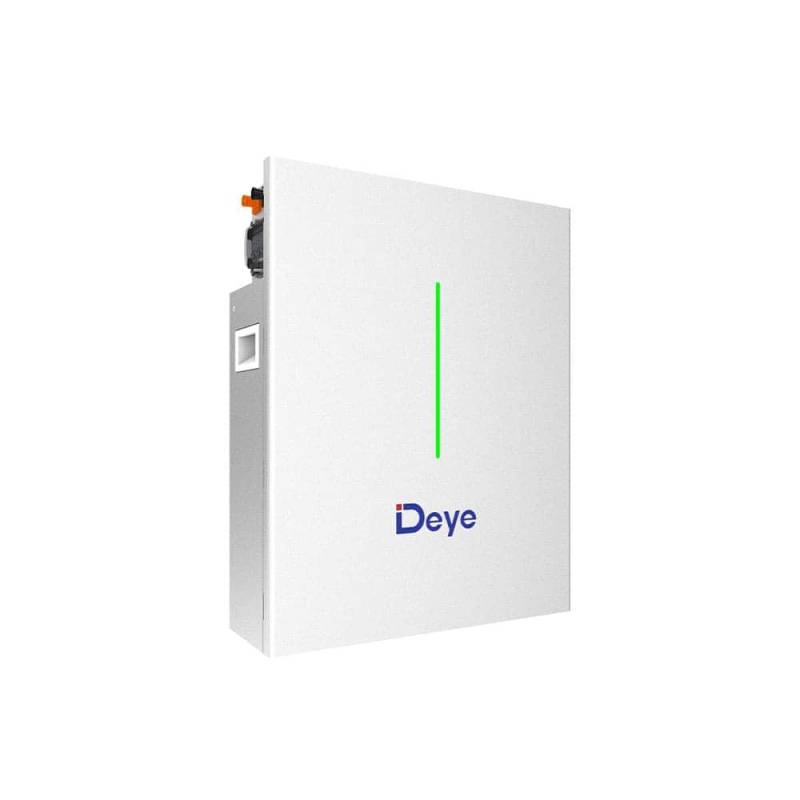

The Deye RW-F10.2 is a new standard in energy storage with our advanced lithium iron phosphate (LFP) battery system—engineered for safety, performance, and versatility. Designed with a cobalt-free chemistry, this battery ensures enhanced safety, long-term durability, and high energy density. Its low-voltage safety connections and integrated Battery Management System (BMS) offer intelligent protection, while the natural cooling design and IP65-rated enclosure provide reliable performance across a wide temperature range from -20°C to 55°C. Ideal for both residential and commercial use, the modular system supports up to 32 units in parallel, scaling to an impressive 326 kWh of capacity. With up to 6000 cycles at 90% depth of discharge and support for 1C charging and 1.2C discharging, it guarantees exceptional performance backed by a 10-year standard warranty. Installation is simple and flexible thanks to its flat form factor, which supports both wall-mounted and floor-standing setups. Seamless integration with Deye inverters, remote monitoring, auto-networking, and environmentally friendly materials make this battery a smart, sustainable choice for powering the future.
Key Features
Enhanced Safety
Cobalt-free LFP · Low-voltage safety · Intelligent BMS
Exceptional Performance
1C charge · 1.2C discharge · ≥6000 cycles · 10-year warranty
Built-in Protection
Natural cooling · IP65 · –20 °C to +55 °C
Modular & Expandable
Up to 32 units → 326 kWh · Perfect for home & business
User-Friendly
Auto-networking · Remote monitoring & upgrades · Deye inverter compatible
Environmentally Friendly
Non-toxic, pollution-free materials
Versatile Installation
Wall or floor · ultra-flat design
Technical Specifications
| Category | Details |
|---|
| General |
- Battery Chemistry: LiFePO₄ (LFP)
- Nominal Capacity: 200 Ah
- Nominal Voltage: 51.2 V
- Operating Voltage Range: 43.2 – 57.6 V
- Nominal Energy: 10.2 kWh
- Usable Energy (90 % DoD): 9.2 kWh
- Built-in Circuit Breaker: 125 A 4P, 60 Vdc
|
| Performance |
- Recommended Charge/Discharge: 100 A
- Max. Continuous Charge: 198 A (≈1C)
- Max. Continuous Discharge: 240 A (≈1.2C)
- Cycle Life: ≥ 6000 cycles @ 90 % DoD
- Warranty: 10 years
|
| Physical & Environmental |
- Dimensions (W×H×D): 600 × 760 × 200 mm (without hanging board)
- Weight: approx. 104 kg
- IP Rating: IP65
- Operating Temperature: Charge 0–55 °C / Discharge –20–55 °C
- Storage Temperature: 0–35 °C
- Humidity: 5–95 %
- Max. Altitude: 3000 m
|
| Communication & Certification |
- Communication: CAN2.0, RS485
- Installation: Wall-mounted or floor-mounted
- Certifications: UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50, CEC
|
Deye RW-F10.2 – the ultimate 10.2 kWh high-performance IP65 battery
1C charge · 1.2C discharge · up to 326 kWh scalable · 100 % weatherproof
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Description / Value |
|---|
| Deye RW-F10.2 Battery Module |
| Model |
RW-F10.2 |
| Battery Chemistry |
LiFePO₄ |
| Capacity |
200 Ah |
| Scalability |
Max. 32 units in parallel (326 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage |
44.8 – 57.6 V |
| Energy |
10.2 kWh |
| Usable Energy (90 % DoD) |
9.2 kWh |
| Rated DC Power |
6 / 7 kW |
| Max. DC Power |
12 kW |
| Charge/Discharge Current – Recommended |
100 A / 100 A |
| Charge/Discharge Current – Max. continuous |
198 A / 240 A |
| Recommended Depth of Discharge |
90 % |
| Dimensions (W×H×D) |
600 × 760 × 200 mm (without hanging board) |
| Weight (approximate) |
104 kg |
| Master LED Indicator |
5 LED (SOC 20 %–100 %), 2 LED (working, protecting) |
| IP Rating of Enclosure |
IP65 |
| Working Temperature |
Charge: 0 °C to +55 °C
Discharge: –20 °C to +55 °C |
| Storage Temperature |
0 °C to 35 °C |
| Humidity |
5 %–95 % |
| Altitude |
≤ 3000 m |
| Installation |
Wall-mounted, Floor-mounted |
| Communication Port |
CAN2.0, RS485 |
| Warranty Period |
10 years |
| Certification |
UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50, CEC |
| Model: |
RW-F10.2 (EU) |
| Capacity: |
Nominal 10.2 kWh / Usable 9.2 kWh |
| Parallel Operation: |
32 pcs. (326kWh) |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
