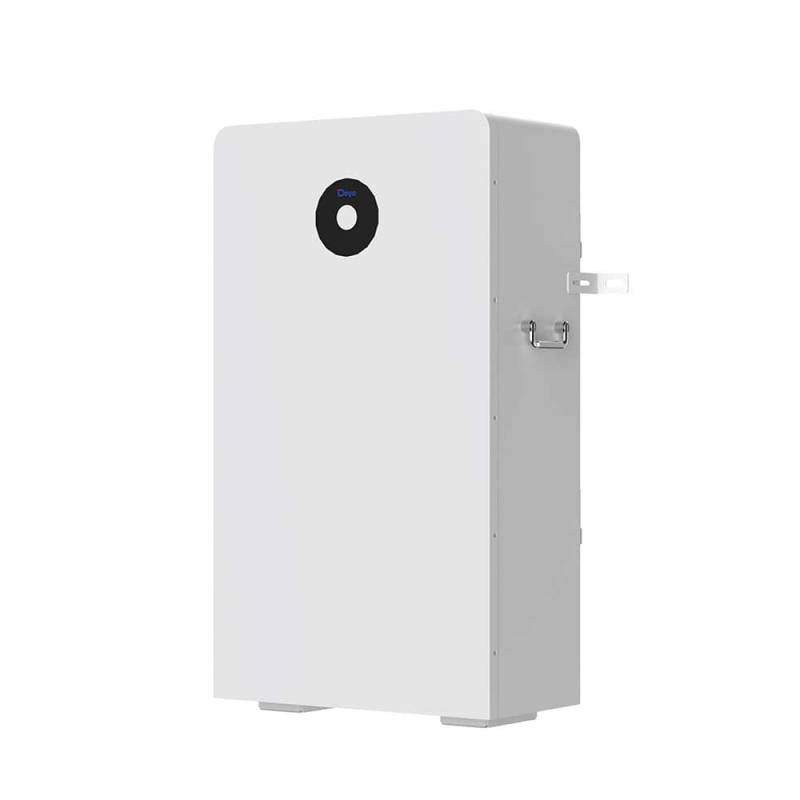

Introducing the Deye RW-F16 – a powerful, safe and future-proof residential energy storage solution with cutting-edge LiFePO₄ technology. Designed for maximum performance and ease of use, it delivers reliable backup power and seamless integration with Deye hybrid inverters.
Key Features
High Power & Scalability
160 A continuous · Up to 32 units → 512 kWh
Premium LiFePO₄ Cells
Cobalt-free · ≥6000 cycles @ 90 % DoD
Built-in Safety
125 A circuit breaker · Intelligent BMS
Wide Temperature Range
Charge 0–55 °C · Discharge –20–55 °C
Smart & Connected
LCD display · Remote monitoring & firmware updates
Flexible Installation
Wall or floor mounting · Compact design
Technical Specifications
| Category | Details |
|---|
| General |
- Battery Chemistry: LiFePO₄ (LFP)
- Nominal Voltage: 51.2 V
- Capacity: 314 Ah
- Nominal Energy: 16 kWh
- Usable Energy (90 % DoD): 14.4 kWh
- Built-in Circuit Breaker: 125 A 2P, 60 Vdc
|
| Performance |
- Max. Continuous Charge/Discharge: 160 A / 160 A
- Peak Current (10 sec): 300 A / 300 A
- Cycle Life: ≥ 6000 @ 90 % DoD, 70 % EOL
- Energy Throughput: 52.5 MWh
|
| Physical & Environmental |
- Dimensions (W×H×D): 480 × 830 × 235 mm
- Weight: approx. 122 kg
- IP Rating: IP20 (indoor)
- Operating Temperature: Charge 0–55 °C / Discharge –20–55 °C
- Storage Temperature: 0–35 °C
- Humidity: ≤ 95 %
- Max. Altitude: 2000 m
|
| Communication & Certification |
- Display: LCD (SOC + status)
- Communication: CAN2.0, RS485
- Installation: Wall or floor
- Certifications: UN38.3, MSDS
|

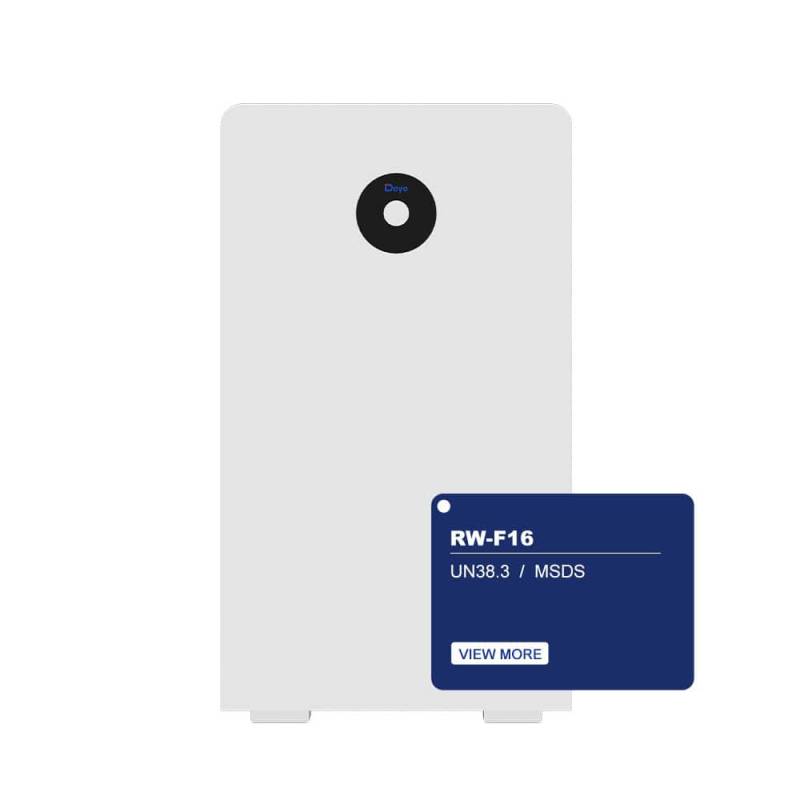

Deye RW-F16 – powerful 16 kWh indoor residential battery
160 A continuous · up to 512 kWh scalable · LCD display · ≥6000 cycles
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Description / Value |
|---|
| Deye RW-F16 Battery Module |
| Model |
RW-F16 |
| Battery Chemistry |
LiFePO₄ |
| Built-in Circuit Breaker |
125 A 2P, 60 Vdc |
| Capacity |
314 Ah |
| Scalability |
Max. 32 units in parallel (512 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage |
44.8 – 57.6 V |
| Nominal Energy |
16 kWh |
| Usable Energy (90 % DoD) |
14.4 kWh |
| Charge/Discharge Current – Max. continuous |
160 A / 160 A |
| Charge/Discharge Current – Peak (10 sec) |
300 A / 300 A |
| Recommended Depth of Discharge |
90 % |
| Dimensions (W×H×D) |
480 × 830 × 235 mm (without hanging board and base) |
| Weight (approximate) |
122 kg |
| Master LCD Indicator |
LCD (SOC and working state) |
| IP Rating of Enclosure |
IP20 |
| Working Temperature |
Charge: 0 °C to +55 °C
Discharge: –20 °C to +55 °C |
| Recommended Operating Temperature |
15 °C to 35 °C |
| Storage Temperature |
0 °C to 35 °C |
| Relative Humidity |
≤ 95 % |
| Altitude |
≤ 2000 m |
| Cycle Life |
≥ 6000 (25 °C ±2 °C, 0.5C/0.5C, 90 % DoD, 70 % EOL) |
| Installation |
Wall-mounted, Floor-mounted |
| Communication Port |
CAN2.0, RS485 |
| Energy Throughput |
52.5 MWh |
| Certification |
UN38.3, MSDS |
| Model: |
RW-F16 (EU) |
| Capacity: |
Nominal 16 kWh / Usable 14.4 kWh |
| Parallel Operation: |
32 pcs. (512kWh) |
| Charge Cycles: |
> 6000 |
| Warranty: |
10 Years |
