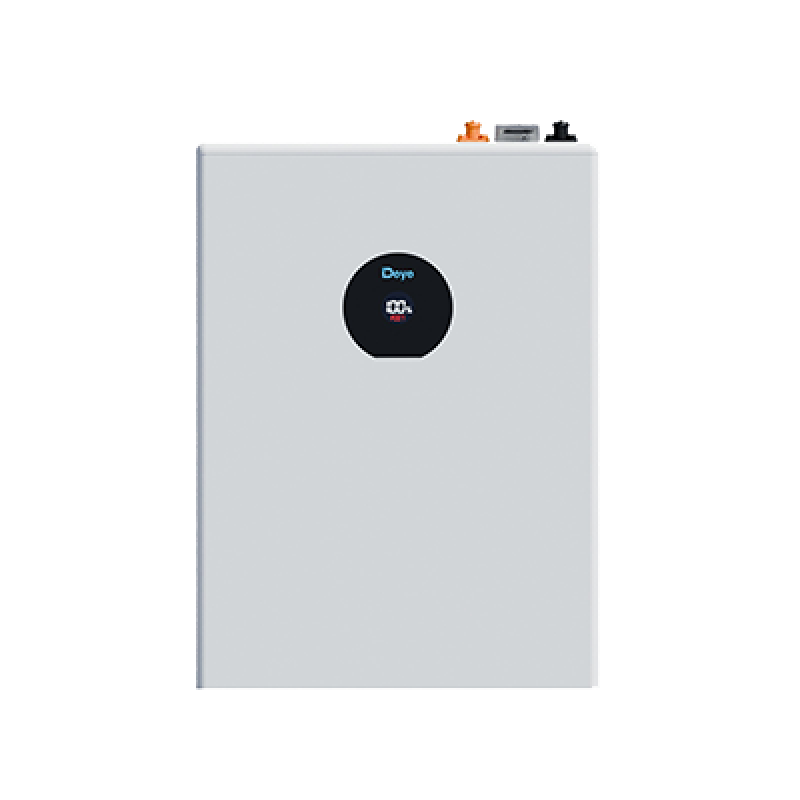

The Deye SE-F12 is a compact, high-performance 11.8 kWh LiFePO₄ battery module that combines extreme power density with outstanding flexibility. With full 230 A continuous charge and discharge (280 A peak), scalability up to 32 modules (377 kWh total), >6,000 cycles and intelligent monitoring via Bluetooth + App, it is the ideal solution for powerful residential systems and smaller commercial applications.
Key Features
Full 1C Power 230 A continuous charge & discharge – 280 A peak
Huge Scalability Up to 32 modules in parallel → 377 kWh total
Ultra-Long Life ≥6,000 cycles at 90 % DoD and 70 % EOL
Smart Monitoring Bluetooth + App, CAN2.0, RS485, auto-networking
Flexible Mounting Wall, floor or stack – only 84 kg and ultra-compact
Technical Specifications
| Category | Details |
|---|
| Battery & Performance |
- Chemistry: LiFePO₄ (230 Ah)
- Energy: 11.8 kWh
- Continuous charge/discharge: 230 A (1C)
- Peak current: 280 A (10 s)
- Cycle life: ≥6,000 (90 % DoD)
|
| Scalability & Communication |
- Max. 32 modules parallel (377 kWh)
- CAN2.0 / RS485 / Bluetooth + App
- Auto-networking & remote monitoring
|
| Physical & Environment |
- Dimensions: 400 × 559 × 233 mm
- Weight: ~84 kg
- IP21, –20 °C to +55 °C operation
- Wall / floor / stack mounting
|
Deye SE-F12 – The perfect 11.8 kWh 1C high-power module for homes and small businesses that demand maximum performance in minimum space.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Description / Value |
|---|
| Deye SE-F12 Battery Module |
| Battery Chemistry |
LiFePO₄ |
| Module Capacity |
230 Ah / 11.8 kWh |
| Scalability |
Max. 32 modules in parallel (377 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
44.8 – 57.6 V |
| Max. Continuous Charge/Discharge Current |
230 A (1C) |
| Peak Current (10 s) |
280 A |
| Recommended DoD |
90 % |
| Cycle Life |
≥6,000 (25 °C ±2 °C, 70 % EOL) |
| Dimensions (W×H×D) |
400 × 559 × 233 mm (without hanging board) |
| Weight |
≈84 kg |
| Protection Rating |
IP21 |
| Operating Temperature |
Charge 0~55 °C / Discharge –20~55 °C |
| Communication |
CAN2.0, RS485, Bluetooth + App |
| Installation |
Wall / Floor / Stack mounted |
| Certification |
UN38.3 |
| Model: |
SE-F12 |
| Capacity: |
11.8 kWh nominal energy |
| Parallel Operation: |
32 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
5 Years |
