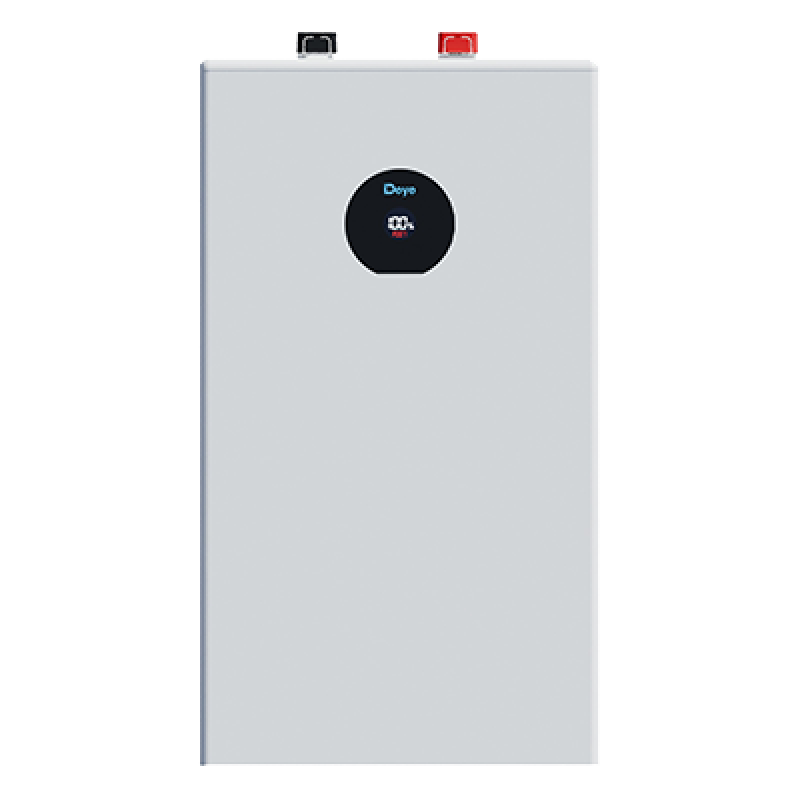

The Deye SE-F16 is a powerful 16 kWh wall/floor/stack-mountable LiFePO₄ high-voltage battery module with outstanding performance and maximum flexibility. With up to 32 modules in parallel (512 kWh total), ultra-high continuous currents (230 A discharge / 160 A charge), >6,000 cycles and intelligent BMS with active fuse, it is the perfect building block for demanding residential and light-commercial energy storage systems.
Key Features
Massive Scalability Up to 32 modules in parallel → 512 kWh total capacity
Extreme Performance 230 A continuous / 280 A peak discharge (1.2C capable)
Proven Longevity ≥6,000 cycles at 90 % DoD and 70 % EOL
Smart & Safe Advanced BMS + active fuse, auto-networking, Bluetooth + App monitoring
Flexible Installation Wall, floor or stack mounting – fits anywhere
Technical Specifications
| Category | Details |
|---|
| Battery & Performance |
- Chemistry: LiFePO₄ (314 Ah)
- Energy: 16 kWh usable
- Continuous charge: 160 A / discharge: 230 A
- Peak discharge: 280 A (10 s)
- Cycle life: ≥6,000 (90 % DoD)
|
| Scalability & Monitoring |
- Max. 32 modules in parallel (512 kWh)
- CAN2.0 / RS485 / Bluetooth + App
- Auto-networking & remote monitoring
|
| Physical & Environment |
- Dimensions: 400 × 708 × 233 mm
- Weight: ~109 kg
- IP21, –20 °C to +55 °C operation
- Wall / floor / stack mounting
|
Deye SE-F16 – The high-performance 16 kWh LiFePO₄ module for systems that simply have to deliver more.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Description / Value |
|---|
| Deye SE-F16 Battery Module |
| Battery Chemistry |
LiFePO₄ |
| Module Capacity |
314 Ah / 16 kWh |
| Scalability |
Max. 32 modules in parallel (512 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
44.8 – 57.6 V |
| Max. Continuous Charge Current |
160 A |
| Max. Continuous Discharge Current |
230 A |
| Peak Current (10 s) |
280 A |
| Recommended DoD |
90 % |
| Cycle Life |
≥6,000 (25 °C ±2 °C, 70 % EOL) |
| Dimensions (W×H×D) |
400 × 708 × 233 mm (without hanging board) |
| Weight |
≈109 kg |
| Protection Rating |
IP21 |
| Operating Temperature |
Charge 0~55 °C / Discharge –20~55 °C |
| Communication |
CAN2.0, RS485, Bluetooth + App |
| Installation |
Wall / Floor / Stack mounted |
| Certifications |
UN38.3, MSDS, CE, CB |
| Model: |
SE-F16 |
| Capacity: |
16 kWh nominal energy |
| Parallel Operation: |
32 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
5 Years |
