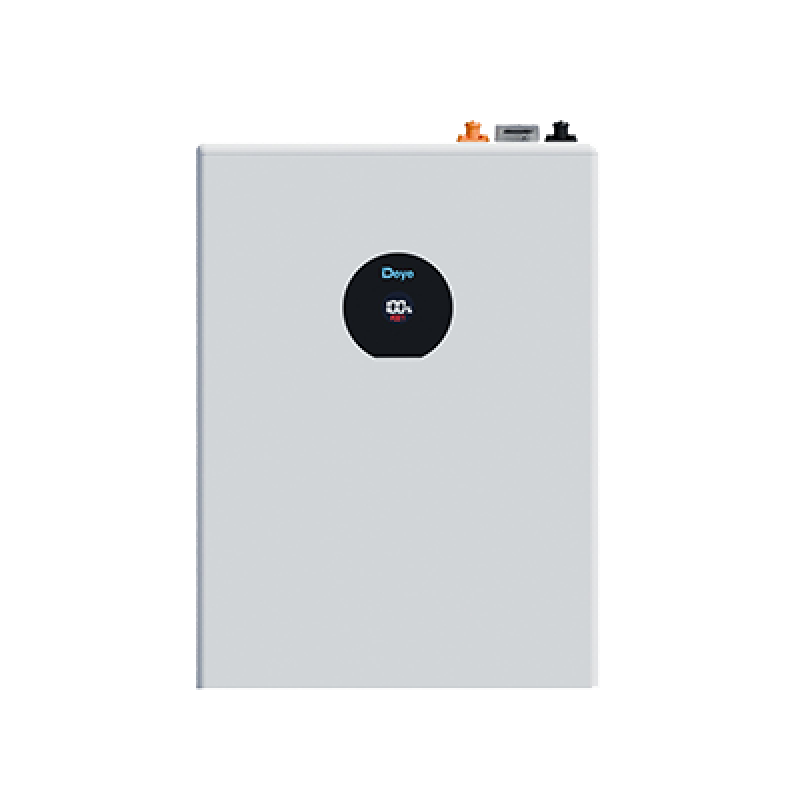

The Deye SE-F5 Pro is the perfect 5.12 kWh LiFePO₄ high-voltage battery module for modern residential storage systems. With full 1C power (100 A continuous / 150 A peak for 2 minutes), up to 32 modules in parallel (163.84 kWh total), >6,000 cycles, active fuse protection and optional WiFi/Bluetooth monitoring, it offers maximum performance, safety and flexibility in an ultra-compact, lightweight package.
Key Features
Full 1C Performance 100 A continuous charge & discharge – 150 A peak for 120 s
Huge Scalability Up to 32 modules parallel → 163.84 kWh total
Extreme Longevity ≥6,000 cycles at 90 % DoD and 70 % EOL
Maximum Safety Advanced BMS + active fuse, extensive certifications
Smart & Connected CAN/RS485 + optional WiFi/Bluetooth + App monitoring
Ultra-Compact Only 44 kg and 404 × 547 × 141 mm – wall, floor or stack
Technical Specifications
| Category | Details |
|---|
| Battery & Performance |
- Chemistry: LiFePO₄ (100 Ah)
- Energy: 5.12 kWh (100 % usable at 90 % DoD)
- Continuous charge/discharge: 100 A (1C)
- Peak current: 150 A (120 s)
- Cycle life: ≥6,000
|
| ScalМ & Communication |
- Max. 32 modules parallel (163.84 kWh)
- CAN2.0 / RS485 + optional WiFi/Bluetooth + App
- Auto-networking & remote monitoring
|
| Physical & Environment |
- Dimensions: 404 × 547 × 141 mm
- Weight: ~44 kg
- IP21, –20 °C to +55 °C operation
- Wall / floor / stack mounting
|
Deye SE-F5 Pro – The ultimate 5.12 kWh 1C LiFePO₄ module: powerful, safe, scalable and only 44 kg!
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Description / Value |
|---|
| Deye SE-F5 Pro Battery Module |
| Battery Chemistry |
LiFePO₄ |
| Module Capacity |
100 Ah / 5.12 kWh |
| Usable Energy |
5.12 kWh (90 % DoD) |
| Scalability |
Max. 32 modules parallel (163.84 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
44.8 – 57.6 V |
| Max. Continuous Charge/Discharge |
100 A (1C) |
| Peak Current (120 s) |
150 A |
| Recommended DoD |
90 % |
| Cycle Life |
≥6,000 (25 °C ±2 °C, 70 % EOL) |
| Dimensions (W×H×D) |
404 × 547 × 141 mm (without hanging board) |
| Weight |
≈44 kg |
| Protection Rating |
IP21 |
| Operating Temperature |
Charge 0~55 °C / Discharge –20~55 °C |
| Communication |
CAN2.0, RS485, optional WiFi + Bluetooth + App |
| Installation |
Wall / Floor / Stack mounted |
| Certifications |
UN38.3, MSDS, CE, CB, VDE2510-50, FCC, UL1973, UL9540A, CEC |
| Model: |
SE-F5 Pro |
| Capacity: |
5.12 kWh nominal energy |
| Parallel Operation: |
32 pcs. |
| Charge Cycles: |
> 6000 |
| Warranty: |
5 Years |
