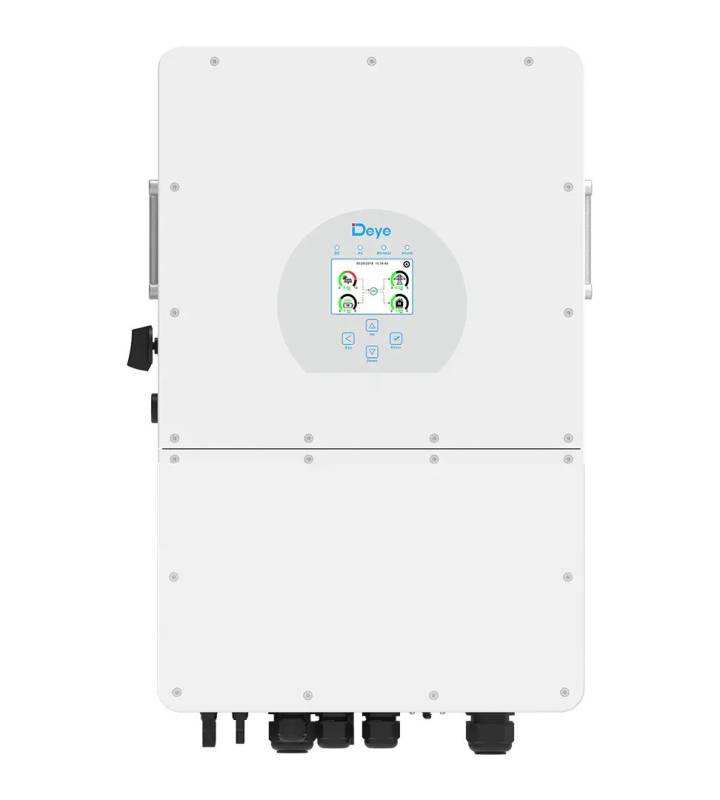

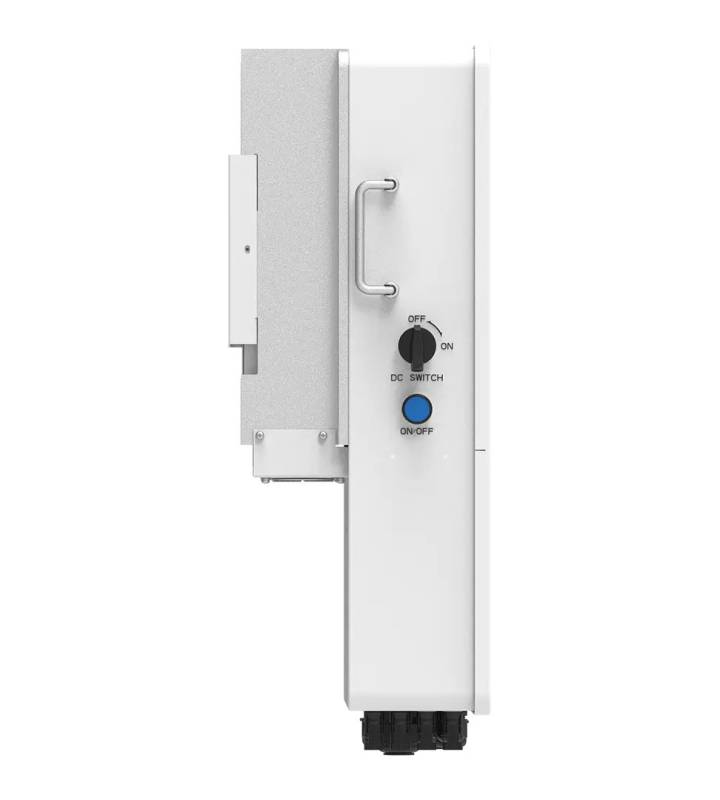

The Deye SUN-10K-SG01HP3-EU is a compact yet extremely powerful 10 kW three-phase high-voltage hybrid inverter – perfect for modern homes, small businesses and agricultural operations. With 2 independent MPPTs (1+1 strings), up to 20 kW PV access power and high-voltage battery support (160–700 V), it delivers maximum yield even on complex roofs. 100 % unbalanced load (each phase independently up to 5 kW), AC coupling for retrofitting, parallel operation of up to 10 units, 37 A charge/discharge current and full diesel generator compatibility make it one of the most flexible inverters in its class. Six programmable time slots and intelligent energy management ensure optimal self-consumption and the lowest possible electricity costs.
Key Advantages
100 % Unbalanced Load
Each phase up to 5 kW independently
2 MPPTs – 20 kW PV Access
Ideal for east-west roofs & shading
AC Coupling
Perfect retrofit solution
37 A Battery Current
Fast charging & discharging
High-Voltage Battery 160–700 V
Higher efficiency, lower cable losses
Parallel up to 10 Units
Scalable to 100 kW
Diesel Generator Compatible
Stores generator power
Only 30.5 kg & IP65
Easy installation, outdoor suitable
Deye SUN-10K-SG01HP3-EU – The Smart 10 kW Three-Phase High-Voltage Hybrid
2 MPPT · 20 kW PV · 100 % unbalanced · 37 A · Parallel 10× · Diesel-ready · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-10K-SG01HP3-EU |
| Battery Input Data |
| Battery Type |
Lithium-ion (160–700 V) |
| Max. Charging/Discharging Current |
37 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
20 kW |
| Max. PV Input Power |
16 kW |
| Max. PV Input Voltage |
1000 V |
| Start-up Voltage |
180 V |
| MPPT Voltage Range |
150–850 V |
| Rated DC Input Voltage |
600 V |
| Number of MPP Trackers / Strings per MPPT |
2 / 1+1 |
| Max. Operating PV Input Current |
20 A + 20 A |
| Max. PV Short-Circuit Current |
30 A + 30 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
10 kW |
| Max. Apparent Power |
11 kVA |
| Rated AC Current (400 V / 380 V) |
14.5 A / 15.2 A |
| Max. AC Current |
16.0 A / 16.7 A |
| Peak Power (Off-Grid) |
1.5 × rated power, 10 s |
| Max. Continuous AC Passthrough |
40 A |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| General Data |
| Dimensions (W × H × D) |
408 × 638 × 237 mm |
| Weight |
30.5 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-10K-SG01HP3-EU |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
37A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
