Main page » Catalogue » Products » Deye Hybrid Inverter » Single Phase Hybrid Inverter » SUN-10K-SG02LP1-EU-AM2-P

SUN-10K-SG02LP1-EU-AM2-P | Single Phase Hybrid Inverter | 2 MPPT | LV Battery Supported

Item number:
SUN-10K-SG02LP1-EU-AM2-P
 Delivery time:
after offer evaluation

Print data sheet

Deye SUN-10K-SG02LP1-EU-AM3

10 kW single-phase hybrid inverter with 220 A charge/discharge, 3 MPPTs (20 kW PV), parallel up to 16 units, lead-acid + lithium compatible, AC coupling, diesel generator storage, colour touch LCD and ultra-quiet <30 dB operation. The ultimate power solution for large homes and small commercial systems.

Artikelbild
Artikelbild
Artikelbild 1
Artikelbild 2

The Deye SUN-10K-SG02LP1-EU-AM3 is currently one of the most powerful and flexible single-phase hybrid inverters on the market. With a gigantic 220 A charge/discharge current, three independent MPPTs (3 × 2 strings), up to 20 kW PV access and support for both lead-acid and lithium-ion batteries, it sets new standards. Parallel operation of up to 16 units (on-grid & off-grid), AC coupling for retrofitting, diesel generator compatibility, remote shutdown function and a modern colour touch LCD make it the perfect solution for large homes, farms and small commercial operations. Despite its enormous performance, it weighs only ~30 kg, is extremely quiet (≤ 30 dB) and fully IP65 protected.

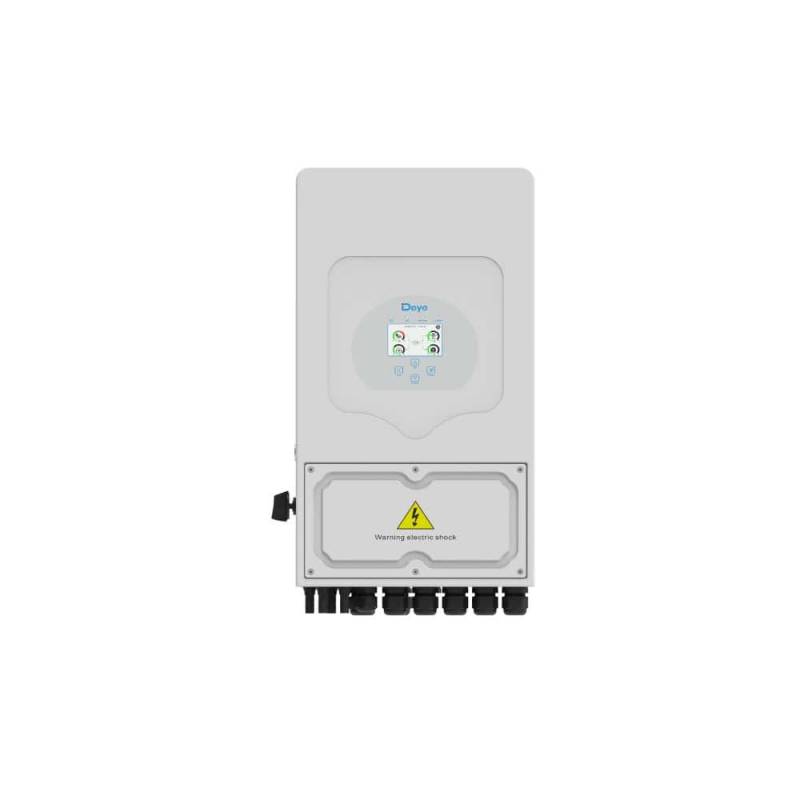

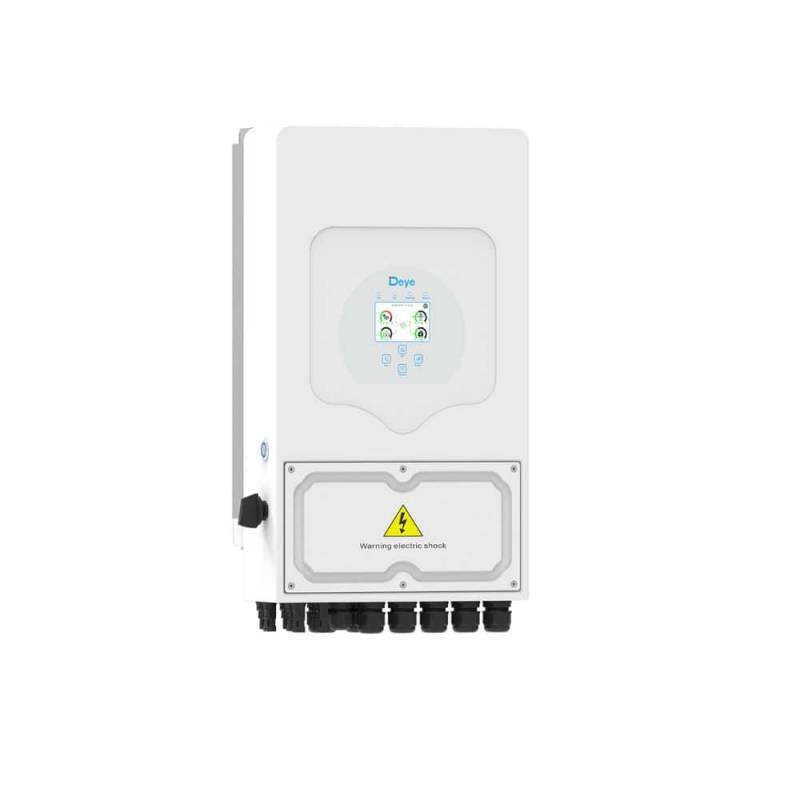

Deye SUN-10K-SG02LP1-EU-AM3 Single-Phase Hybrid Inverter

Key Advantages

220 A Charge/Discharge
Extremely fast battery cycles
3 MPPTs – 6 Strings
20 kW PV access – ideal for complex roofs
Parallel up to 16 Units
Up to 160 kW total power
Lead-Acid + Lithium Compatible
Maximum flexibility
AC Coupling
Perfect retrofit
Diesel Generator Storage
Full backup capability
Colour Touch LCD
Intuitive operation
Extremely Quiet
≤ 30 dB – quieter than a whisper
Deye Hybrid Inverter Installation

Deye SUN-10K-SG02LP1-EU-AM3 – The 10 kW Single-Phase Monster

220 A · 3 MPPT · 20 kW PV · Parallel 16× · Lead-Acid + Lithium · ≤ 30 dB · IP65

Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG Represented by: SYD Verwaltungs GmbH An der Gümpgesbrücke 26 41564 Kaarst Deutschland Diese vertreten durch: Andrej Dedic und Maurice Dedic Tel.: +492131 52811-23 Mail: info@solarset.shop
ParameterSpecification
Single-Phase Hybrid Inverter SUN-10K-SG02LP1-EU-AM3
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40–60 V
Max. Charging/Discharging Current 220 A
Charging Strategy Self-adaptive to BMS
PV String Input Data
Max. PV Access Power 20 kW
Max. PV Input Power 16 kW
Max. PV Input Voltage 500 V
Start-up Voltage 125 V
MPPT Voltage Range 150–425 V
Rated PV Input Voltage 370 V
No. of MPP Trackers / Strings per MPPT 3 / 2+2+2
Max. Operating PV Input Current 44 A + 44 A + 44 A
Max. PV Short-Circuit Current 26 A + 26 A + 26 A
AC Output Data
Rated Output Power 10 kW
Max. Apparent Power 11 kVA
Rated AC Current 45.5 A / 43.5 A
Peak Power (Off-Grid) 2 × rated power, 10 s
Max. Continuous AC Passthrough 60 A
Rated Grid Voltage 220/230 V (L+N+PE)
Efficiency
Max. Efficiency 97.6 %
European Efficiency 96.5 %
MPPT Efficiency > 99 %
Protection & Features
Parallel Operation Up to 16 units
Diesel Generator Storage Supported
General Data
Dimensions (W × H × D) 330 × 580 × 232 mm
Weight 30 kg
Cooling Intelligent air cooling
Noise Level < 30 dB
Protection Rating IP65
Warranty 5 years (extendable to 10 years)
Model: SUN-10K-SG02LP1-EU-AM3
Display: Colorful touch LCD, IP65 protection degree
System Compatibility: AC couple to retrofit existing solar systems
Parallel Operation: Max. 16 pcs in parallel for on-grid and off-grid operation
High Current Handling: 220A
Time-Based Control: 6 time periods for battery charging/discharging
Generator Integration: Supports storing energy from diesel generators
Warranty: 5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.)
