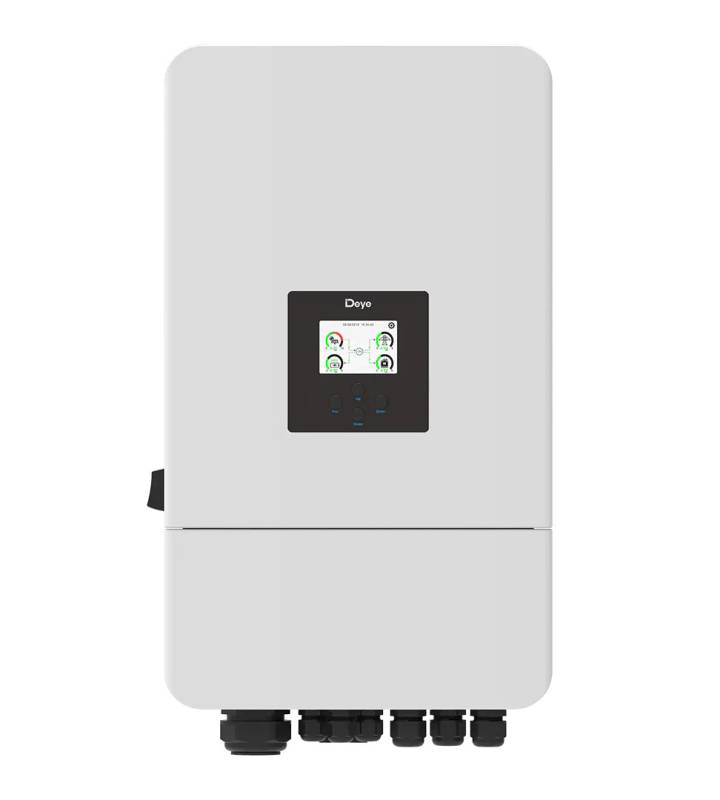

The Deye SUN-10K-SG05LP3-EU-SM2 is a powerful 10 kW three-phase low-voltage hybrid inverter (48 V) with an enormous charging/discharging current of 210 A – one of the strongest in its class. Perfect for private homes and small commercial applications. It supports lead-acid and lithium batteries, 100 % unbalanced load (each phase up to 50 %), AC coupling for retrofitting, parallel operation of up to 10 units (on- and off-grid), diesel generator compatibility and six freely programmable time periods for optimal tariff management. With 2 MPPTs (up to 20 kW PV access), transformer isolation for maximum safety and IP65 protection, it offers top performance, flexibility and reliability.
Key Advantages
210 A Charge/Discharge
Extremely fast battery cycles
100 % Unbalanced Load
Each phase up to 50 % independently
2 MPPTs – 20 kW PV Access
Perfect for complex roofs
AC Coupling
Easy retrofit of existing systems
Parallel up to 10 units
Up to 100 kW total power
Diesel Generator Compatible
Stores energy from generators
48 V Low-Voltage + Isolation
Maximum safety
Six Time Slots
Perfect tariff optimisation
Deye SUN-10K-SG05LP3-EU-SM2 – The 10 kW Powerhouse with 210 A
210 A · 100 % Unbalanced · 20 kW PV · Parallel 10× · Diesel · 48 V Isolated · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-10K-SG05LP3-EU-SM2 |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging/Discharging Current |
210 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
20 kW |
| Max. PV Input Power |
15 kW |
| Max. PV Input Voltage |
800 V |
| Start-up Voltage |
160 V |
| MPPT Voltage Range |
200–650 V |
| Rated PV Input Voltage |
550 V |
| Number of MPP Trackers / Strings per MPPT |
2 / 2+2 |
| Max. Operating PV Input Current |
26 A + 26 A |
| Max. Short-Circuit Current |
39 A + 39 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
10 kW |
| Max. Apparent Power |
11 kVA |
| Rated AC Current (400 V / 380 V) |
14.5 A / 15.2 A |
| Max. AC Current |
16 A / 16.7 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
45 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
386 × 660 × 253 mm |
| Weight |
35.2 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-10K-SG05LP3-EU-SM2 |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
210A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
