The Deye SUN-12K-SG01HP3-EU is a compact yet extremely powerful 12 kW three-phase high-voltage hybrid inverter – the ideal solution for large residential systems and smaller commercial projects. With 2 MPPTs (2+1 strings), up to 24 kW PV access power and high-voltage battery support (160–700 V), it offers maximum flexibility. 100 % unbalanced output (each phase independently up to 50 % rated power), AC coupling for retrofitting, parallel operation of up to 10 units (on- and off-grid), 37 A charge/discharge current and diesel generator compatibility make this inverter unbeatable in its class. Six freely programmable time slots and a full energy management system ensure maximum self-consumption and optimal electricity cost savings.
Key Advantages
100 % Unbalanced Output
Each phase independently up to 50 % rated power
2 MPPTs – 3 Strings
24 kW PV access – perfect for complex roofs
AC Coupling
Ideal retrofit for existing systems
37 A Charge/Discharge
Fast battery cycles
High-Voltage Battery 160–700 V
Higher efficiency, lower losses
Parallel up to 10 Units
On-grid & off-grid – up to 120 kW total
Diesel Generator Compatible
Stores energy from generators
Six Time Slots
Perfect tariff optimisation

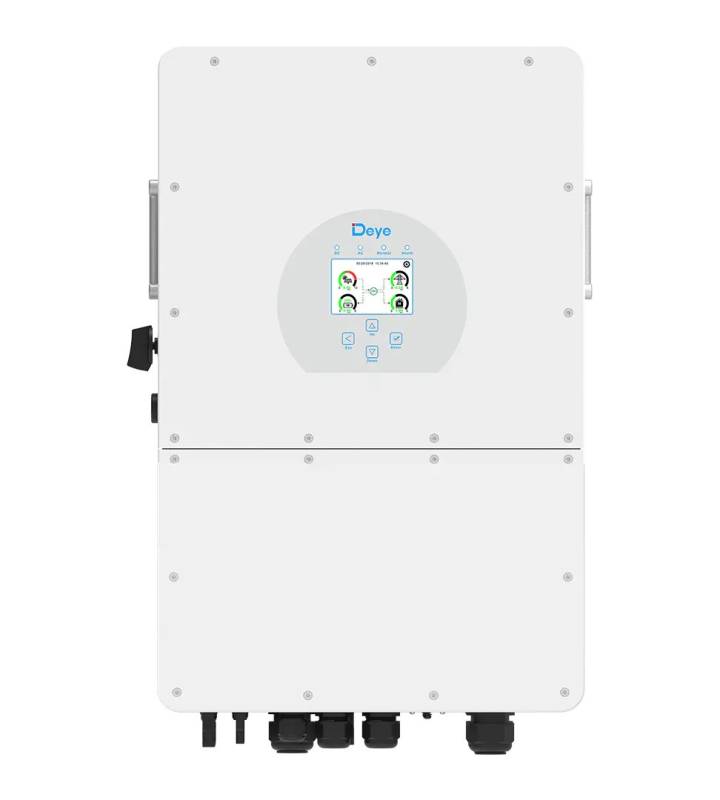

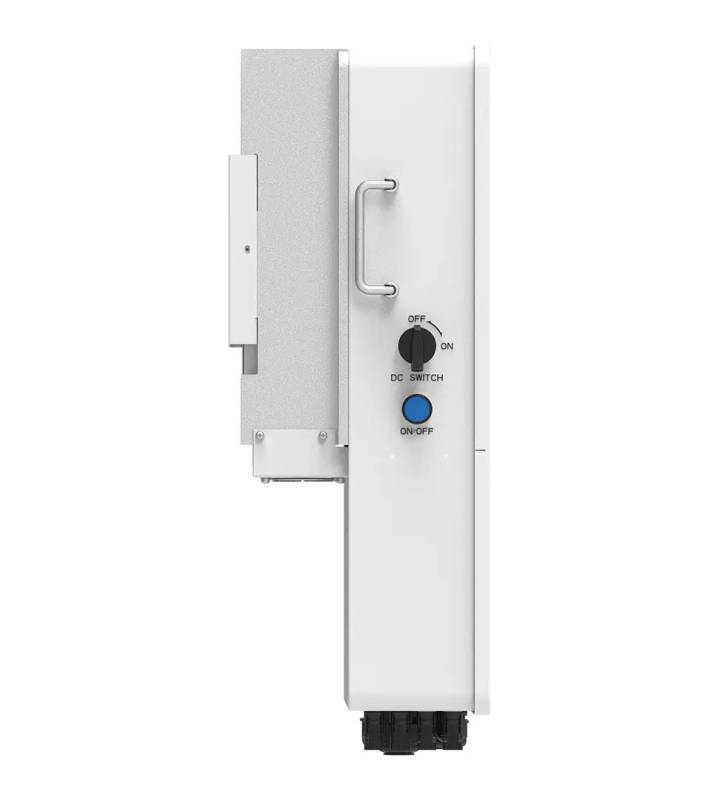

Deye SUN-12K-SG01HP3-EU – Compact 12 kW Three-Phase High-Voltage Hybrid Powerhouse
2 MPPT · 24 kW PV · 100 % Unbalanced · 37 A · Parallel 10× · Diesel Compatible · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-12K-SG01HP3-EU |
| Battery Input Data |
| Battery Type |
Lithium-ion (160–700 V) |
| Max. Charging/Discharging Current |
37 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
24 kW |
| Max. PV Input Power |
19.2 kW |
| Max. PV Input Voltage |
1000 V |
| Start-up Voltage |
180 V |
| MPPT Voltage Range |
150–850 V |
| Rated DC Input Voltage |
600 V |
| Number of MPP Trackers / Strings per MPPT |
2 / 2+1 |
| Max. Operating PV Input Current |
26 A + 20 A |
| Max. PV Short-Circuit Current |
39 A + 30 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
12 kW |
| Max. Apparent Power |
13.2 kVA |
| Rated AC Current (400 V / 380 V) |
17.4 A / 18.2 A |
| Max. AC Current |
19.2 A / 20 A |
| Peak Power (Off-Grid) |
1.5 × rated power, 10 s |
| Max. Continuous AC Passthrough |
80 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
408 × 638 × 237 mm |
| Weight |
30.5 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-12K-SG01HP3-EU |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
37A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
