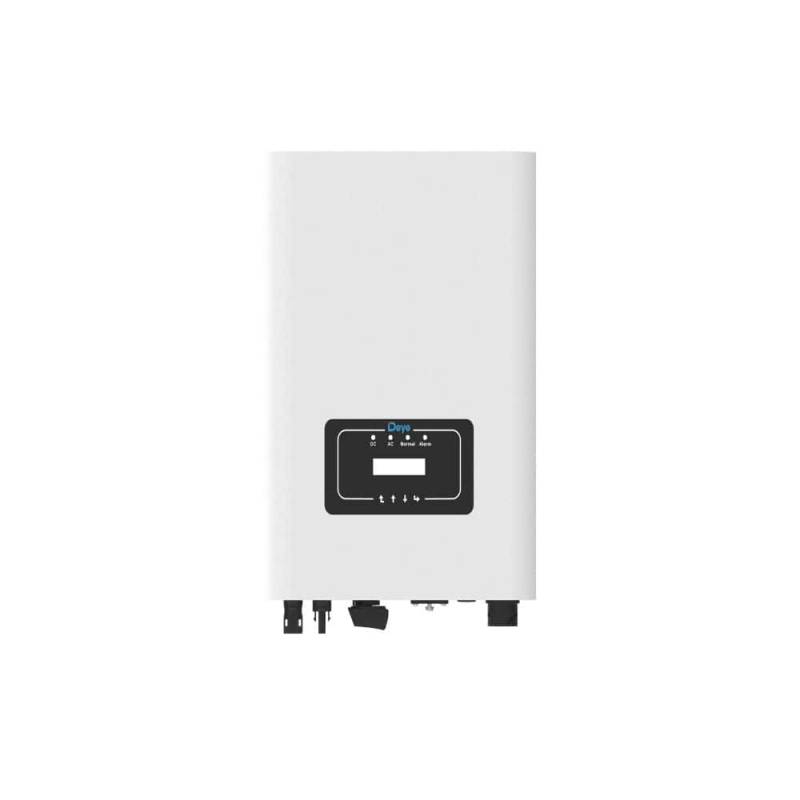

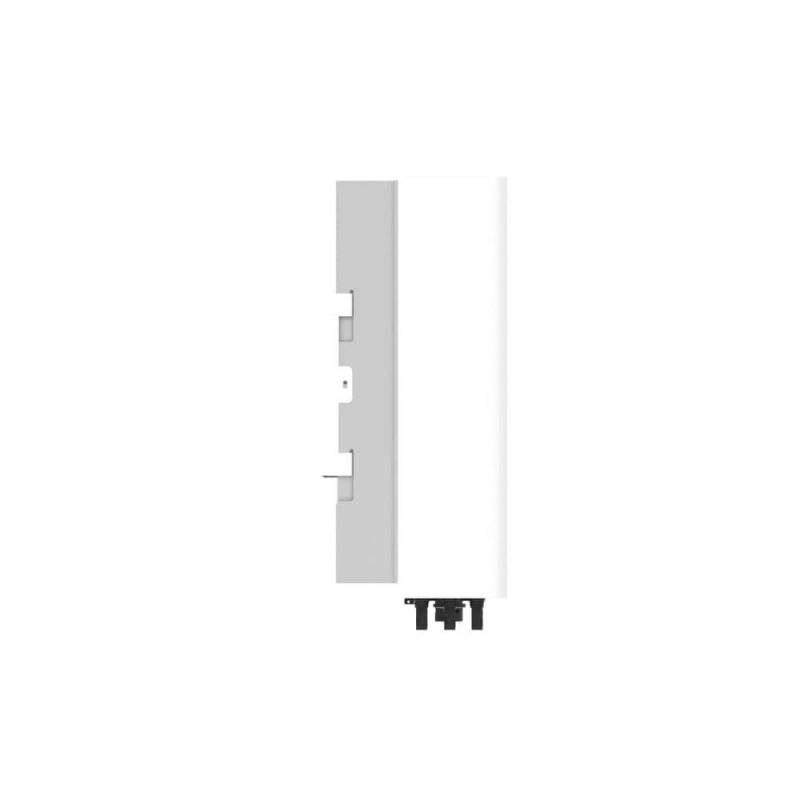

The Deye SUN-15K-G06P3-EU-AM2-P1 is a highly efficient 15 kW three-phase string inverter of the latest generation, specially developed for residential and smaller commercial solar systems. With a peak efficiency of 98.5 % and a European efficiency of 98 %, it delivers top performance. Two independent MPPTs with an ultra-wide voltage range of 120–1000 V and a very low start-up voltage of only 140 V guarantee maximum yield even in poor light conditions. Zero-export capability, integrated VSG (Virtual Synchronous Generator) technology for grid stabilisation, optional string-level monitoring and optional anti-PID function make this inverter future-proof and extremely versatile. At just 11 kg and with compact dimensions (283 × 463 × 178 mm) plus IP65 protection, it is perfect for easy wall mounting – indoors or outdoors. Extensive communication options and full certification to all major European standards round off this outstanding package.
Key Advantages
Top Efficiency
98.5 % peak · 98 % European efficiency – maximum yield.
Ultra-Low Start-Up
Only 140 V start-up, 120–1000 V MPPT range.
Zero Export & VSG
Perfect for export-limited regions + grid support.
Extremely Light
Only 11 kg – single-person installation.
Quiet & Compact
< 45 dB, 283 × 463 × 178 mm, IP65.
Full Protection
Type II SPD (DC+AC), optional AFCI, anti-PID.
Smart Monitoring
Optional string-level monitoring, Wi-Fi/4G/LAN.
Deye SUN-15K-G06P3-EU-AM2-P1 – The Ultra-Compact 15 kW Premium String Inverter
98.5 % Efficiency · 2 MPPT · Zero Export · VSG · Only 11 kg · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| String Inverter Model SUN-15K-G06P3-EU-AM2-P1 |
| PV String Input Data |
| Max. PV Input Power |
22.5 kW |
| Max. PV Input Voltage |
1100 V |
| Start-up Voltage |
140 V |
| MPPT Voltage Range |
120–1000 V |
| Rated PV Input Voltage |
600 V |
| Max. Operating PV Input Current |
20 + 26 A |
| Max. Input Short Circuit Current |
30 + 39 A |
| No. of MPP Trackers / Strings per MPP Tracker |
2 / 1+2 |
| AC Output Side |
| Rated AC Output Active Power |
15 kW |
| Max. AC Output Apparent Power |
16.5 kVA |
| Rated AC Output Current (400 V / 380 V) |
21.8 A / 22.8 A |
| Max. AC Output Current (400 V / 380 V) |
24 A / 25 A |
| Rated Output Voltage / Range |
220/380 V, 230/400 V (0.85 Un – 1.1 Un) |
| Grid Connection Form |
3L/N/PE |
| Rated Grid Frequency / Range |
50/60 Hz (45–55 / 55–65 Hz) |
| Power Factor Adjustment Range |
0.8 leading – 0.8 lagging |
| Total Harmonic Distortion (THDi) |
< 3 % |
| DC Injection Current |
< 0.5 % In |
| Efficiency |
| Max. Efficiency |
98.5 % |
| European Efficiency |
98.0 % |
| MPPT Efficiency |
> 99 % |
| Equipment Protection |
| DC Polarity Reverse Connection Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| Thermal Protection |
Yes |
| DC Terminal Insulation Impedance Monitoring |
Yes |
| DC Component Monitoring |
Yes |
| Arc Fault Circuit Interrupter (AFCI) |
Optional |
| Ground Fault Current Monitoring |
Yes |
| Power Network Monitoring |
Yes |
| Island Protection Monitoring |
Yes |
| Earth Fault Detection |
Yes |
| Overvoltage Load Drop Protection |
Yes |
| Residual Current (RCD) Detection |
Yes |
| Surge Protection Level |
Type II (DC), Type II (AC) |
| Interface |
| Communication Interface |
RS485 / RS232 |
| Monitoring Mode |
GPRS / Wi-Fi / Bluetooth / 4G / LAN (optional) |
| General Data |
| Operating Temperature Range |
-25 °C to +60 °C (>45 °C derating) |
| Permissible Ambient Humidity |
0–100 % |
| Permissible Altitude |
4000 m |
| Noise Emission |
< 45 dB |
| Ingress Protection Rating |
IP65 |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II (DC), OVC III (AC) |
| Cabinet Size (W × H × D) |
283 × 463 × 178 mm (excl. connectors and brackets) |
| Weight |
11 kg |
| Type of Cooling |
Intelligent air cooling |
| Warranty |
5 years |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 |
| Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2 |
| Model: |
SUN-15K-G06P3-EU-AM2-P1 |
| Start-up Voltage: |
140V |
| Anti-PID Function: |
Optional |
| Warranty: |
5 Years |
