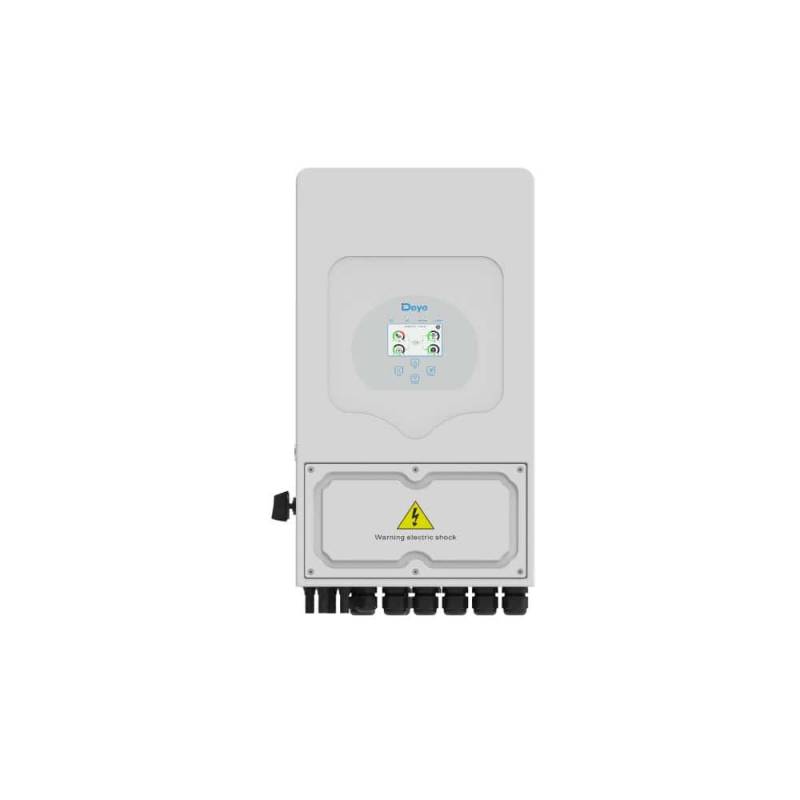

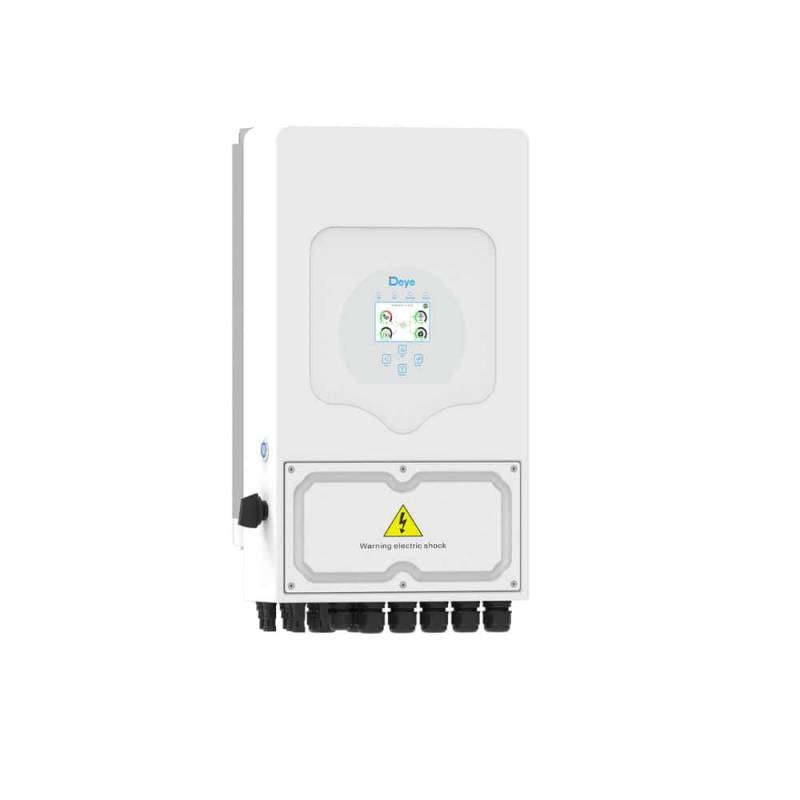

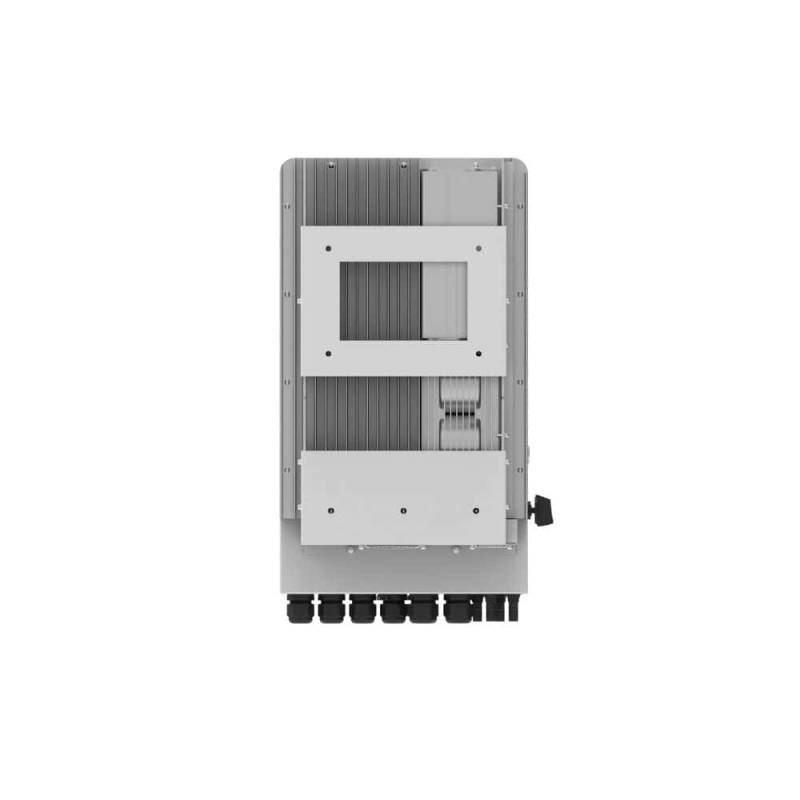

The Deye SUN-16K-SG01LP1-EU is currently the most powerful single-phase low-voltage hybrid inverter on the market – a true 16 kW powerhouse for large family homes and small commercial applications. With an incredible 290 A charging/discharging current, 3 independent MPPTs (32 kW PV access!), parallel operation of up to 16 units (on- & off-grid), support for lead-acid and lithium batteries (including parallel battery packs), AC coupling for retrofitting, diesel generator compatibility, color touch LCD, remote shutdown and IP65 protection, this inverter leaves nothing to be desired. Extremely quiet (<30 dB!), intelligent cooling and full remote management via app/cloud round off the premium package.
Key Advantages
290 A Charge/Discharge
Fastest battery cycles on the market
3 MPPTs – 6 Strings
32 kW PV access – ideal for complex roofs
Parallel up to 16 Units
Up to 256 kW total power (on- & off-grid)
Lead-Acid + Lithium CompatibleEven parallel battery packs possible
AC Coupling
Perfect retrofit for existing systems
Diesel Generator Storage
Stores energy from generators
Color Touch LCD + App
Intuitive operation & remote control
Ultra-quiet < 30 dB
Barely audible even under full load
Deye SUN-16K-SG01LP1-EU – The most powerful single-phase hybrid inverter in the world
16 kW · 290 A · 3 MPPT · 32 kW PV · Parallel 16× · Lead-Acid + Lithium · < 30 dB · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Single-Phase Hybrid Inverter SUN-16K-SG01LP1-EU |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging/Discharging Current |
290 A |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
32 kW |
| Max. PV Input Power |
25.6 kW |
| Max. PV Input Voltage |
500 V |
| Start-up Voltage |
125 V |
| MPPT Voltage Range |
150–425 V |
| Rated PV Input Voltage |
370 V |
| No. of MPP Trackers / Strings per MPPT |
3 / 2+2+2 |
| Max. Operating PV Input Current |
44 A + 44 A + 44 A |
| Max. PV Short-Circuit Current |
26 A + 26 A + 26 A |
| AC Output Data |
| Rated Output Power |
16 kW |
| Max. Apparent Power |
17.6 kVA |
| Rated AC Current (230 V / 220 V) |
69.6 A / 72.7 A |
| Max. AC Current |
76.5 A / 80 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
100 A |
| Grid Connection |
L+N+PE |
| Efficiency |
| Max. Efficiency |
97.6 % |
| Euro Efficiency |
96.5 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| Parallel Operation |
Up to 16 units (on- & off-grid) |
| Diesel Generator Storage |
Supported |
| Remote Shutdown & Updates |
Yes |
| General Data |
| Dimensions (W × H × D) |
330 × 580 × 232 mm |
| Weight |
52 kg |
| Noise Level |
< 30 dB |
| Protection Rating |
IP65 |
| Cooling |
Intelligent air cooling |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-16K-SG01LP1-EU |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 16 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
290A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
