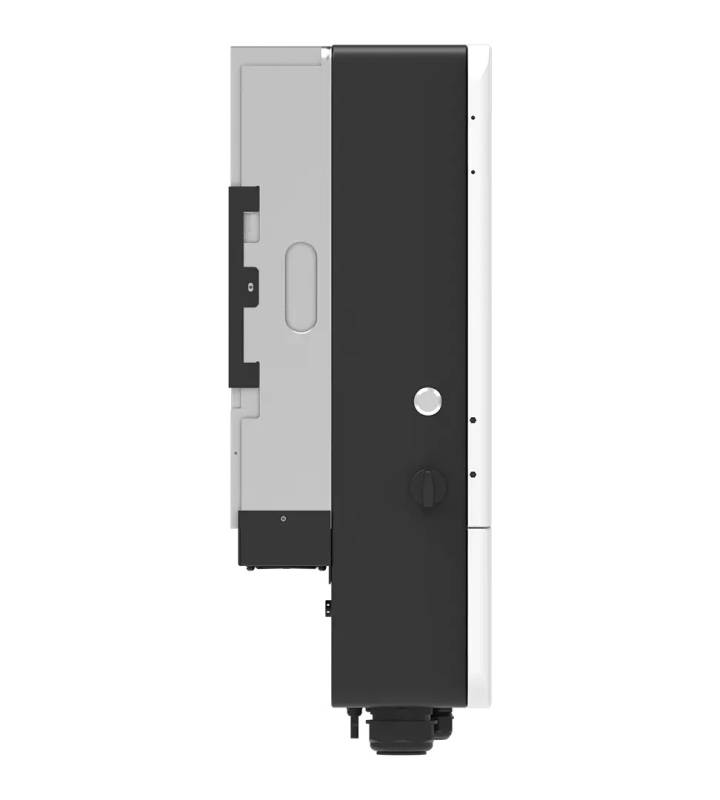

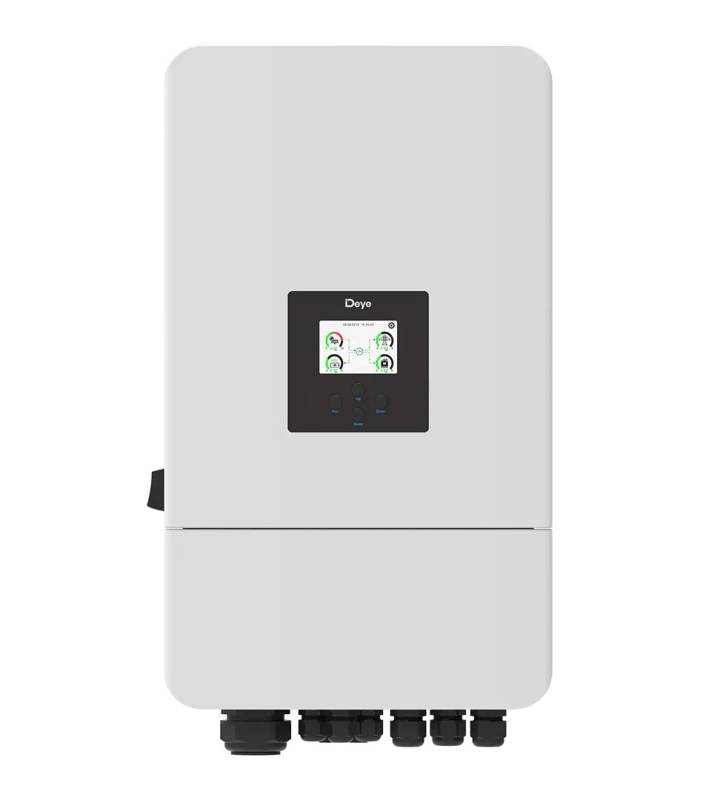

The Deye SUN-20K-SG05LP3-EU-SM2 is a powerful 20 kW three-phase low-voltage hybrid inverter with 350 A charge and discharge current – currently the strongest 48 V hybrid inverter on the market. Thanks to its transformer-isolated design and extremely high battery current, it is perfect for large residential systems and small commercial applications with high power requirements. 100 % unbalanced load (each phase up to 50 %), AC coupling for retrofitting, parallel operation of up to 10 units (on-grid & off-grid), diesel generator compatibility and six freely programmable time slots make this inverter the ultimate all-rounder. With a maximum PV input of 40 kW and 2 MPPTs (2+2 strings), it extracts every available watt.
Key Advantages
350 A Battery Current
Fastest charging & discharging in the 48 V class
100 % Unbalanced Load
Each phase independently up to 50 % rated power
40 kW PV Access
2 MPPTs with 2+2 strings each
Parallel up to 10 Units
On-grid & off-grid → up to 200 kW
AC Coupling
Ideal retrofit for existing systems
Diesel Generator Compatible
Stores energy from generators
Six Time Slots
Perfect tariff optimisation
Transformer Isolation
Maximum safety at 48 V
Deye SUN-20K-SG05LP3-EU-SM2 – The 20 kW Low-Voltage Powerhouse
350 A · 40 kW PV · 100 % Unbalanced · Parallel 10× · Diesel Compatible · Transformer Isolated · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-20K-SG05LP3-EU-SM2 |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion (40–60 V) |
| Max. Charging/Discharging Current |
350 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
40 kW |
| Max. DC Input Power |
32 kW |
| Max. PV Input Voltage |
800 V |
| Start-up Voltage |
160 V |
| MPPT Voltage Range |
160–650 V |
| Rated DC Input Voltage |
550 V |
| No. of MPP Trackers / Strings per MPPT |
2 / 2+2 |
| Max. Operating PV Input Current |
36 A + 36 A |
| Max. Short-Circuit Current |
54 A + 54 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
20 kW |
| Max. Apparent Power |
22 kVA |
| Rated AC Current (400 V / 380 V) |
29 A / 30.4 A |
| Max. AC Current |
31.9 A / 33.4 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
70 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units (on-grid & off-grid) |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
456 × 750 × 268.5 mm |
| Weight |
51.9 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 60 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-20K-SG05LP3-EU-SM2 |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
350A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
