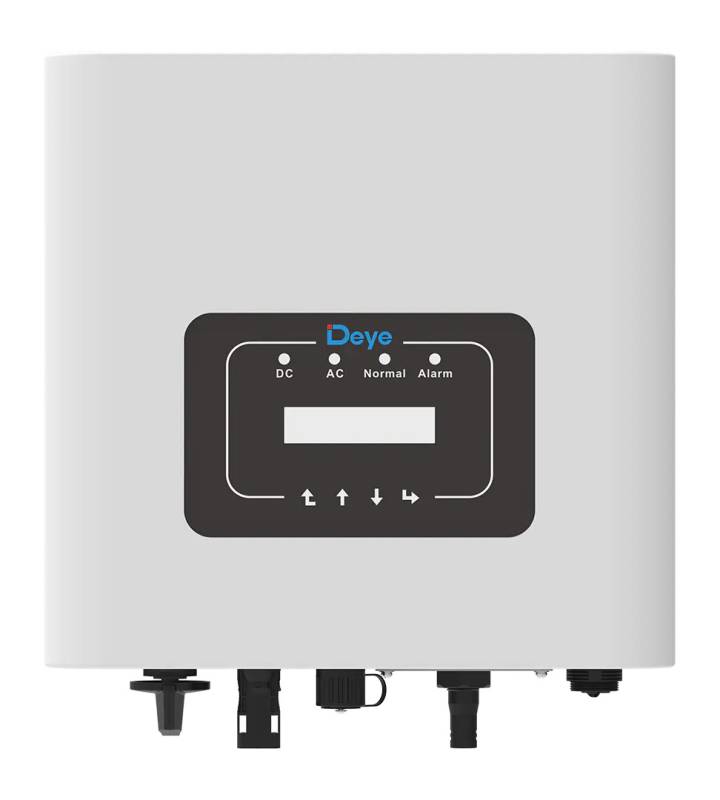

The Deye SUN-3K-G04P1-EU-AM1 is a compact, state-of-the-art 3 kW single-phase string inverter – perfect for smaller residential homes and compact commercial systems. With a peak efficiency of 97.5 % and a European efficiency of 97.0 %, it delivers excellent performance in its class. Thanks to an extremely low start-up voltage of only 80 V, it produces power even in low-light conditions. Zero-export capability, VSG grid support, optional string-level monitoring and optional anti-PID function make it highly flexible and future-proof. Weighing just 6.35 kg, with ultra-compact dimensions of 280 × 310 × 184 mm, natural cooling (barely audible ≤ 35 dB) and IP65 protection, it can be installed by one person – indoors or outdoors. Extensive communication options and full certification to all major European standards complete this outstanding package.
Key Advantages
Excellent Efficiency
97.5 % peak · 97.0 % European
Extremely Early Start
Only 80 V start-up voltage
Zero Export & VSG
Maximum self-consumption + grid support
Barely Audible
Natural cooling, ≤ 35 dB
Feather-Light & Compact
Only 6.35 kg, 280 × 310 × 184 mm, IP65
Full Protection Suite
Type II SPD (DC+AC), optional AFCI
Smart Monitoring
Wi-Fi / 4G / Bluetooth optional
Deye SUN-3K-G04P1-EU-AM1 – The Ultra-Light 3 kW Premium Single-Phase Inverter
97.5 % Efficiency · 80 V Start · Zero Export · VSG · ≤ 35 dB · Only 6.35 kg · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Single-Phase String Inverter SUN-3K-G04P1-EU-AM1 |
| PV String Input Data |
| Max. PV Input Power |
3.9 kW |
| Max. PV Input Voltage |
550 V |
| Start-up Voltage |
80 V |
| MPPT Voltage Range |
70–500 V |
| Rated PV Input Voltage |
360 V |
| Max. Operating PV Input Current |
20 A |
| Max. Input Short Circuit Current |
30 A |
| No. of MPP Trackers / Strings per MPP Tracker |
1 / 1 |
| AC Output Side |
| Rated AC Output Active Power |
3 kW |
| Max. AC Output Apparent Power |
3.3 kVA |
| Rated AC Output Current (230 V / 220 V) |
13.1 A / 13.7 A |
| Max. AC Output Current (230 V / 220 V) |
14.4 A / 15 A |
| Rated Output Voltage / Range |
220/230 V (0.85 Un – 1.1 Un) |
| Grid Connection Form |
L+N+PE |
| Rated Grid Frequency / Range |
50/60 Hz (45–55 / 55–65 Hz) |
| Power Factor Adjustment Range |
0.8 leading – 0.8 lagging |
| Total Harmonic Distortion (THDi) |
< 3 % |
| DC Injection Current |
< 0.5 % In |
| Efficiency |
| Max. Efficiency |
97.5 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Equipment Protection |
| DC Polarity Reverse Connection Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| Thermal Protection |
Yes |
| Insulation Impedance Monitoring |
Yes |
| DC Component Monitoring |
Yes |
| Arc Fault Circuit Interrupter (AFCI) |
Optional |
| Anti-Islanding Protection |
Yes |
| Residual Current Detection |
Yes |
| Surge Protection Level |
Type II (DC), Type II (AC) |
| DC Switch |
Yes |
| Interface |
| Communication Interface |
RS485 / RS232 |
| Monitoring Mode |
GPRS / Wi-Fi / Bluetooth / 4G / LAN (optional) |
| General Data |
| Operating Temperature Range |
-25 °C to +65 °C (>45 °C derating) |
| Permissible Ambient Humidity |
0–100 % |
| Permissible Altitude |
2000 m |
| Noise Emission |
≤ 35 dB |
| Ingress Protection Rating |
IP65 |
| Cabinet Size (W × H × D) |
280 × 310 × 184 mm (excl. connectors and brackets) |
| Weight |
6.35 kg |
| Type of Cooling |
Natural Cooling |
| Warranty |
5 years |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105 |
| Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2 |
| Model: |
SUN-3K-G04P1-EU-AM1 |
| Start-up Voltage: |
80V |
| Anti-PID Function: |
Yes |
| Warranty: |
5 Years |
