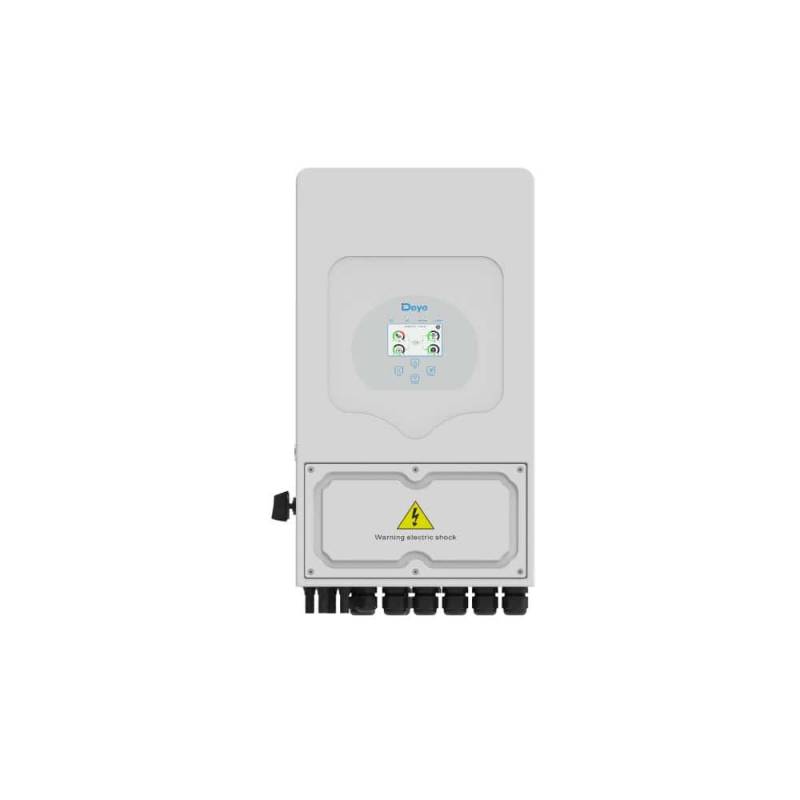

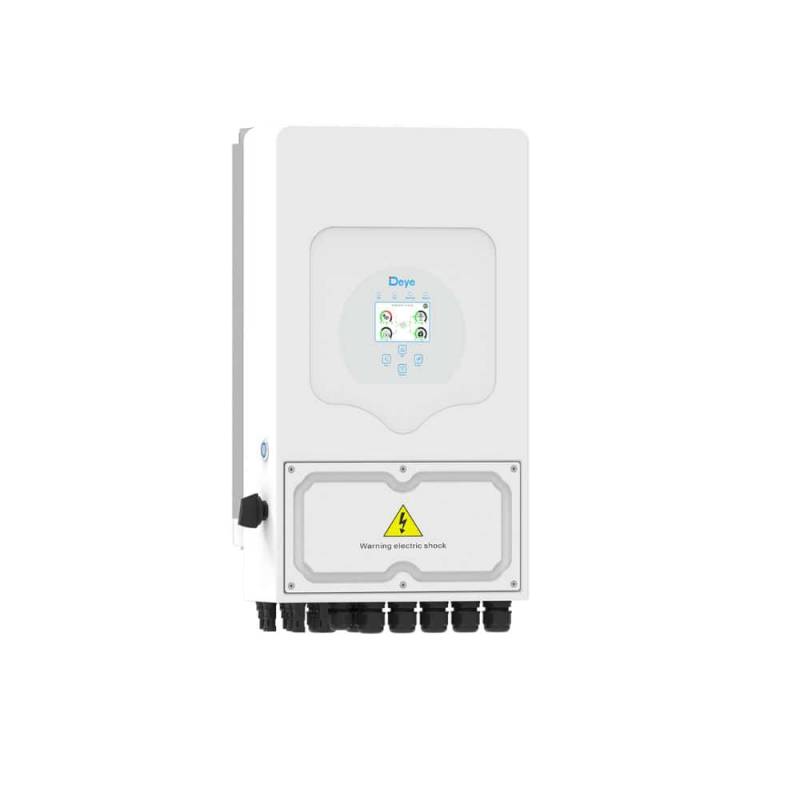

The Deye SUN-5K-SG03LP1-EU is a highly efficient single-phase hybrid inverter with a powerful 120 A charge/discharge current and two independent MPPTs (2 × 1 string). With up to 10 kW PV access, support for lead-acid and lithium-ion batteries, parallel operation of up to 16 units (on-grid & off-grid), AC coupling for retrofitting, diesel generator compatibility, colour touch LCD and full remote management, it is the ideal solution for almost every residential installation. Ultra-quiet (≤ 30 dB), only 24.9 kg and completely IP65 protected.
Key Advantages
120 A Charge/Discharge
Extremely fast battery cycles
2 MPPTs – 10 kW PV Access
Perfect for complex roofs
Parallel up to 16 Units
Up to 80 kW total power
Lead-Acid + Lithium Compatible
Maximum flexibility
AC Coupling
Ideal retrofit solution
Diesel Generator Storage
Full backup capability
Colour Touch LCD
Intuitive operation
Ultra Quiet
≤ 30 dB – barely audible
Deye SUN-5K-SG03LP1-EU – The 5 kW Bestseller
120 A · 2 MPPT · 10 kW PV · Parallel 16× · Lead-Acid + Lithium · ≤ 30 dB · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Single-Phase Hybrid Inverter SUN-5K-SG03LP1-EU |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging Current |
120 A |
| Max. Discharging Current |
120 A |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| Number of Battery Inputs |
1 |
| PV String Input Data |
| Max. PV Access Power |
10 kW |
| Max. PV Input Power |
6.5 kW |
| Max. PV Input Voltage |
500 V |
| Start-up Voltage |
125 V |
| MPPT Voltage Range |
150–425 V |
| Rated PV Input Voltage |
370 V |
| No. of MPP Trackers / Strings per Tracker |
2 / 1+1 |
| Max. Operating PV Input Current |
13 A + 13 A |
| Max. Input Short-Circuit Current |
17 A + 17 A |
| AC Input/Output Data |
| Rated AC Input/Output Active Power |
5000 W |
| Max. AC Input/Output Apparent Power |
5500 VA |
| Peak Power (Off-grid) |
2 × rated power, 10 s |
| Rated AC Input/Output Current |
22.7 A / 21.7 A |
| Max. AC Input/Output Current |
25 A / 23.9 A |
| Max. Continuous AC Passthrough |
35 A |
| Rated Voltage / Range |
220/230 V, 0.85 Un–1.1 Un |
| Grid Connection Form |
L+N+PE |
| Rated Grid Frequency / Range |
50/60 Hz (45–55 Hz / 55–65 Hz) |
| Power Factor Adjustment Range |
0.8 leading – 0.8 lagging |
| Total Harmonic Distortion (THDi) |
≤ 3 % (of nominal power) |
| DC Injection Current |
≤ 0.5 % In |
| Efficiency |
| Max. Efficiency |
97.6 % |
| Euro Efficiency |
96.5 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| Integrated Protections |
DC reverse polarity, AC overcurrent, overtemperature, short circuit, ground fault, DC switch, insulation monitoring, RCD, optional arc fault, islanding detection, surge protection |
| Surge Protection |
Type II (DC + AC) |
| General Data |
| Operating Temperature Range |
–40 °C to +60 °C (derating >45 °C) |
| Permissible Ambient Humidity |
0–100 % |
| Max. Operating Altitude |
2000 m |
| Noise Emission |
≤ 30 dB |
| Ingress Protection |
IP65 |
| Cooling |
Intelligent air cooling |
| Dimensions (W × H × D) |
330 × 580 × 232 mm (excl. connectors/brackets) |
| Weight |
24.9 kg |
| Communication |
RS485 / RS232 / CAN |
| Monitoring |
GPRS / WIFI / Bluetooth / 4G / LAN (optional) |
| Warranty |
5 years (extendable to 10 years depending on installation location) |
| Model: |
SUN-5K-SG03LP1-EU |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 16 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
120A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
