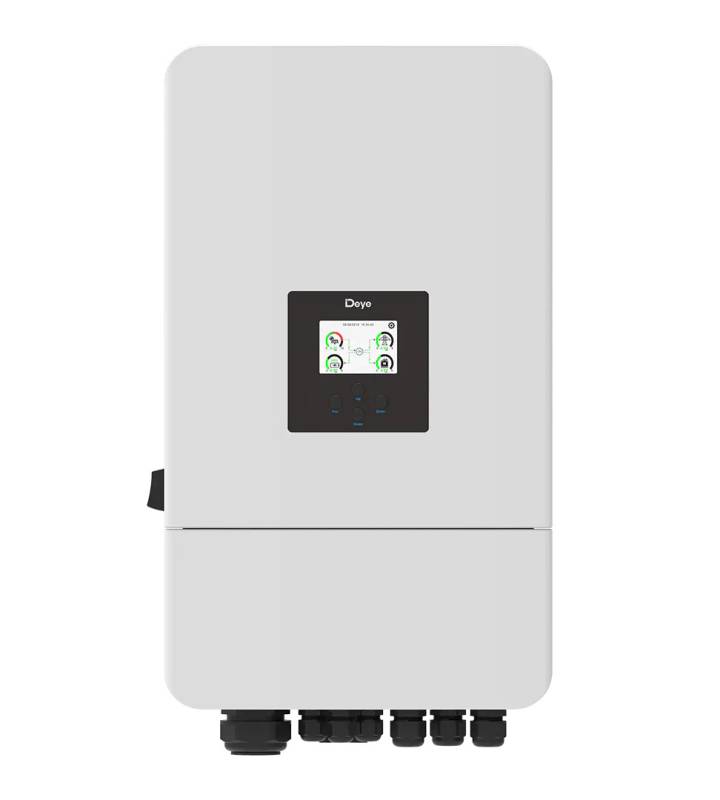

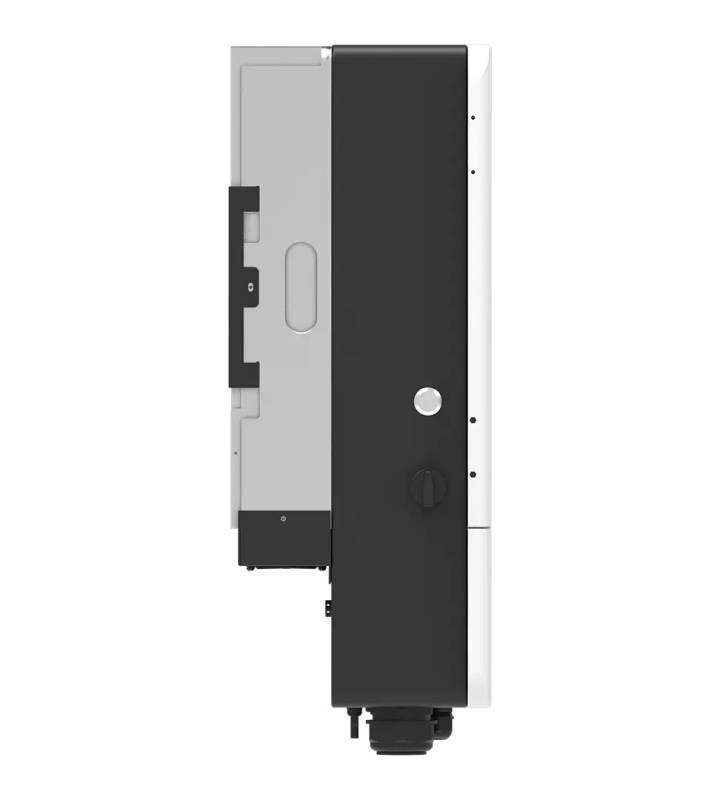

The Deye SUN-5K-SG05LP3-EU-SM2 is a powerful 5 kW three-phase low-voltage hybrid inverter with an impressive 120 A charging/discharging current – one of the strongest in its class. Perfect for homes and small commercial systems, it supports lead-acid and lithium batteries (48 V), 100 % unbalanced output (each phase up to 50 %), parallel operation of up to 10 units (on- & off-grid), AC coupling for retrofitting, diesel generator compatibility and six freely programmable time periods. Thanks to transformer isolation and IP65 housing, it offers maximum safety and durability – even under extreme conditions.
Key Advantages
120 A Charge/Discharge
Extremely fast battery cycling
100 % Unbalanced Output
Each phase independently up to 50 %
Parallel up to 10 Units
On-grid & off-grid – up to 50 kW
AC Coupling
Perfect for retrofitting existing systems
Diesel Generator Compatible
Stores energy from generators
Six Time Slots
Perfect tariff optimisation
Transformer Isolation + IP65
Maximum safety & durability
2 MPPTs – 10 kW PV Access
Ideal for complex roofs
Deye SUN-5K-SG05LP3-EU-SM2 – The 5 kW Three-Phase Low-Voltage Powerhouse
120 A · 100 % Unbalanced · 10 kW PV · Parallel 10× · Diesel Compatible · Transformer Isolated · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-5K-SG05LP3-EU-SM2 |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging/Discharging Current |
120 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
10 kW |
| Max. PV Input Power |
7.5 kW |
| Max. PV Input Voltage |
800 V |
| Start-up Voltage |
160 V |
| MPPT Voltage Range |
200–650 V |
| Rated PV Input Voltage |
550 V |
| No. of MPP Trackers / Strings per MPPT |
2 / 1+1 |
| Max. Operating PV Input Current |
20 A + 20 A |
| Max. Short-Circuit Current |
30 A + 30 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
5 kW |
| Max. Apparent Power |
5.5 kVA |
| Rated AC Current (400 V / 380 V) |
7.3 A / 7.6 A |
| Max. AC Current |
8.0 A / 8.4 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
45 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units (on- & off-grid) |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
386 × 660 × 253 mm (excl. connectors) |
| Weight |
35.2 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Model: |
SUN-5K-SG05LP3-EU-SM2 |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
120A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
