SUN-6K-SG05LP1-EU-AM2-P | Single Phase Off-Grid Inverter | 2 MPPT | LV Battery Supported

Item number:
SUN-6K-SG05LP1-EU-AM2-P
 Delivery time:
after offer evaluation
Print data sheet

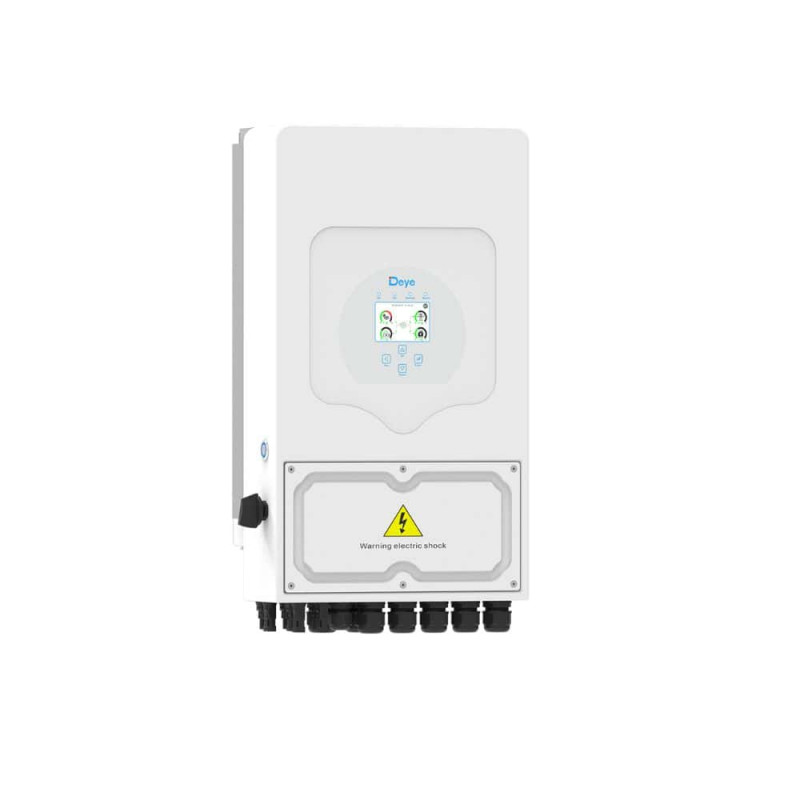

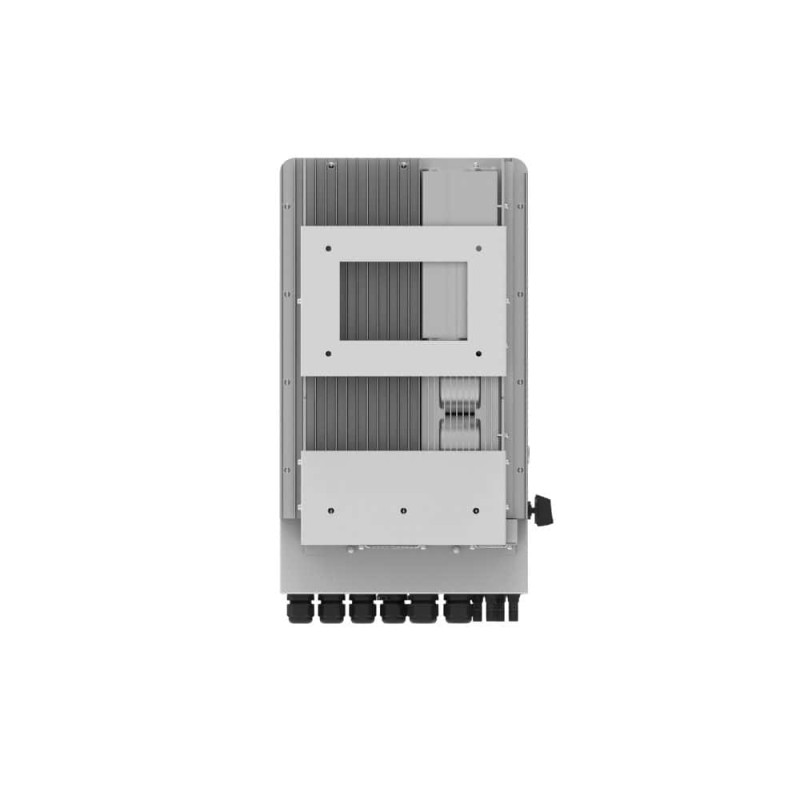

Deye SUN-6K-SG05LP1-EU-AM2-P

6 kW single-phase hybrid inverter with powerful 135 A charge/discharge, 2 MPPTs (12 kW PV), 6 programmable time periods, parallel up to 16 units, AC coupling, diesel generator storage, colour touch LCD and ultra-quiet ≤ 30 dB. The perfect all-rounder for larger homes and commercial use.

Artikelbild
Artikelbild
Artikelbild 1
Artikelbild 2

The Deye SUN-6K-SG05LP1-EU-AM2-P is the powerful 6 kW single-phase hybrid inverter from the new AM2 series, featuring an extremely high 135 A charge/discharge current and two independent MPPTs. With up to 12 kW PV access power, parallel operation of up to 16 units (on-grid & off-grid), AC coupling for retrofitting, diesel generator energy storage, 6 individually programmable charge/discharge time periods, a colour touch LCD and full remote management, it meets the highest demands. Ultra-quiet (≤ 30 dB), only approx. 25 kg and fully IP65 protected.

Deye SUN-6K-SG05LP1-EU-AM2-P Hybrid Inverter

Key Advantages

135 A Charge/Discharge Current
Extremely fast battery cycling
2 MPPTs – 12 kW PV Access
Perfect for large and complex roofs
Up to 16 Units in Parallel
Up to 96 kW total system power
6 Freely Programmable Time Periods
Optimal cost and self-consumption management
AC Coupling
Ideal retrofit solution
Diesel Generator Storage
Full emergency power capability
Colour Touch LCD
Intuitive on-site operation
Ultra-Quiet ≤ 30 dB
Barely audible – even in living areas
Deye 6 kW Hybrid Inverter Installation

Deye SUN-6K-SG05LP1-EU-AM2-P – The 6 kW Power Hybrid

135 A · 2 MPPT · 12 kW PV · 6 Time Periods · Parallel 16× · Diesel Storage · ≤ 30 dB · IP65

Product Safety Act (German "ProdSG")
Manufacturer:
ParameterSUN-3.6K
SG05LP1-EU		SUN-5K
SG05LP1-EU		SUN-6K
SG05LP1-EU
(AM2-P)		SUN-7K
SG05LP1-EU		SUN-7.6K
SG05LP1-EU		SUN-8K
SG05LP1-EU		SUN-10K
SG05LP1-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40–60 V
Max. Charge/Discharge Current 90 A 120 A 135 A 175 A 190 A 190 A 210 A
Charging Strategy for Li-ion Self-adaption to BMS
Number of Battery Inputs 1
PV String Input Data
Max. PV Access Power 7.2 kW 10 kW 12 kW 14 kW 15.2 kW 16 kW 20 kW
Max. PV Input Power 5.76 kW 8 kW 9.6 kW 11.2 kW 12.16 kW 12.8 kW 16 kW
Max. PV Input Voltage 500 V
Start-up / MPPT Voltage Range 125 V / 150–425 V
Max. Operating PV Current 13 + 13 A 26 + 26 A
Max. Short-Circuit Current 17 + 17 A 34 + 34 A
No. of MPP Trackers / Strings per MPP 2 / 1+1 2 / 2+2
AC Input/Output Data
Rated Output Power 3600 W 5000 W 6000 W 7000 W 7600 W 8000 W 10000 W
Max. Apparent Power 3960 VA 5500 VA 6600 VA 7700 VA 8360 VA 8800 VA 11000 VA
Rated Current (In/Out) 16.4 / 15.7 A 22.7 / 21.7 A 27.3 / 26.1 A 31.9 / 30.5 A 34.5 / 33 A 36.4 / 34.8 A 45.5 / 43.5 A
Max. Current (In/Out) 18 / 17.2 A 25 / 23.9 A 30 / 28.7 A 35 / 33.5 A 38 / 36.3 A 40 / 38.3 A 50 / 47.9 A
Max. Continuous AC Passthrough 35 A 40 A 50 A
Peak Power (Off-Grid) 2 × rated power, 10 s
Efficiency & General Data
Max. Efficiency 97.6 %
Euro Efficiency 96.5 %
MPPT Efficiency > 99 %
Protection Rating IP65
Noise Emission ≤ 30 dB
Parallel Operation Up to 16 units (on-grid & off-grid)
Programmable Charge/Discharge Periods 6 time periods
Diesel Generator Energy Storage Supported
Display Colour Touch LCD
