The Deye SUN-80K-SG02HP3-EU-EM6 is a powerful 80 kW three-phase high-voltage hybrid inverter – the perfect solution for large residential systems, commercial buildings and small industrial plants. With 6 independent MPPTs (2 strings each), a gigantic PV input of up to 160 kW and high-voltage battery support (160–1000 V), it extracts every watt from the roof. 100 % unbalanced output (each phase can deliver up to 50 % of rated power independently), AC coupling for easy retrofitting of existing PV systems, parallel operation of up to 10 units (on-grid & off-grid) and diesel generator compatibility make this inverter unbeatable in flexibility and reliability. Maximum charging/discharging power of 80 A + 80 A, six freely configurable time slots and full EMS functionality ensure perfect energy management according to electricity tariffs and self-consumption requirements.
Key Advantages
100 % Unbalanced Output
Each phase independently up to 50 % rated power
6 MPPTs – 12 Strings
160 kW PV access, ideal for complex roofs
AC Coupling
Perfect retrofit for existing PV systems
80 A + 80 A Charge/Discharge
Extremely fast battery cycles
High-Voltage Battery 160–1000 V
Higher efficiency, lower losses
Parallel up to 10 Units
On-grid & off-grid – up to 800 kW total
Diesel Generator Compatible
Stores energy from generators
Six Time Slots
Perfect tariff optimisation

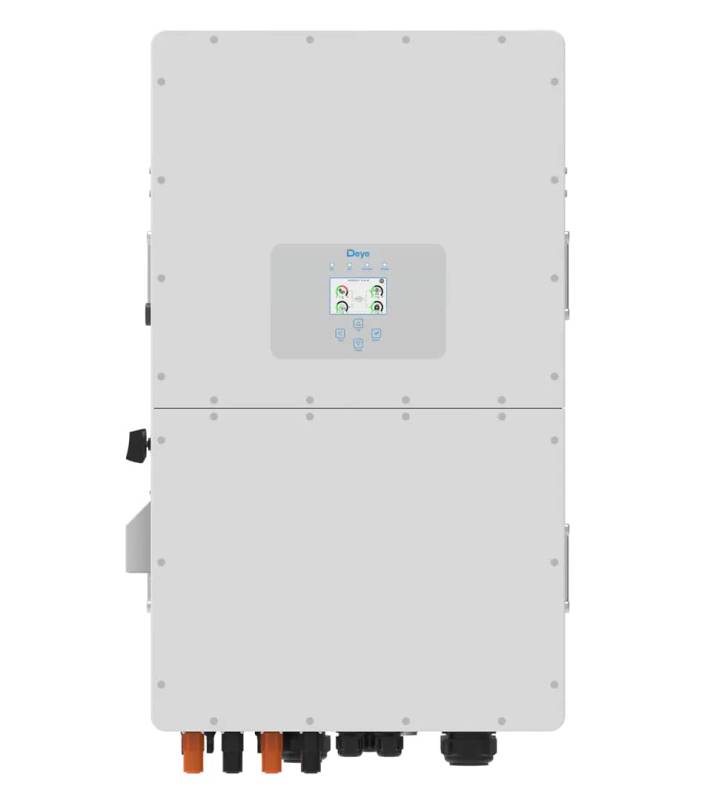

Deye SUN-80K-SG02HP3-EU-EM6 – The 80 kW Three-Phase High-Voltage Hybrid Powerhouse
6 MPPT · 160 kW PV · 100 % Unbalanced · 80+80 A · Parallel 10× · Diesel Compatible · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Three-Phase Hybrid Inverter SUN-80K-SG02HP3-EU-EM6 |
| Battery Input Data |
| Battery Type |
Lithium-ion (160–1000 V) |
| Max. Charging / Discharging Current |
80 A + 80 A |
| Number of Battery Inputs |
2 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
160 kW |
| Max. PV Input Power |
128 kW |
| Max. PV Input Voltage |
1000 V |
| Start-up Voltage |
180 V |
| MPPT Voltage Range |
150–850 V |
| Rated PV Input Voltage |
650 V |
| No. of MPP Trackers / Strings per MPPT |
6 / 2+2+2+2+2+2 |
| Max. Operating PV Input Current |
36 A × 6 |
| Max. Short-Circuit Current |
54 A × 6 |
| AC Output Data (On-Grid) |
| Rated Output Power |
80 kW |
| Max. Apparent Power |
88 kVA |
| Rated AC Output Current (400 V / 380 V) |
115.9 A / 121.3 A |
| Max. AC Output Current |
127.6 A / 133.4 A |
| Peak Power (Off-Grid) |
1.5 × rated power, 10 s |
| Max. Continuous AC Passthrough |
200 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Power Factor |
0.8 leading – 0.8 lagging |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Load Support |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units (on- & off-grid) |
| Diesel Generator Energy Storage |
Supported |
| Surge Protection |
Type II (DC + AC) |
| AFCI (Arc Fault Protection) |
Optional |
| General Data |
| Dimensions (W × H × D) |
606 × 927 × 314 mm (excl. connectors) |
| Weight |
105 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 65 dB |
| Protection Rating |
IP65 |
| Operating Temperature |
-40 °C to +60 °C (>45 °C derating) |
| Communication |
RS485 / RS232 / CAN + Wi-Fi / GPRS / 4G / LAN (optional) |
| Warranty |
5 years (extendable to 10 years depending on region) |
| Model: |
SUN-80K-SG02HP3-EU-EM6 |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Parallel Operation: |
Max. 10 pcs in parallel for on-grid and off-grid operation |
| High Current Handling: |
80A plus 80A |
| Time-Based Control: |
6 time periods for battery charging/discharging |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
