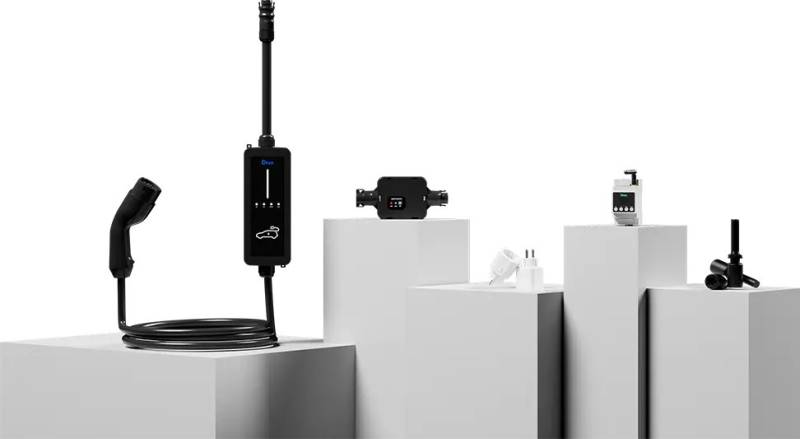

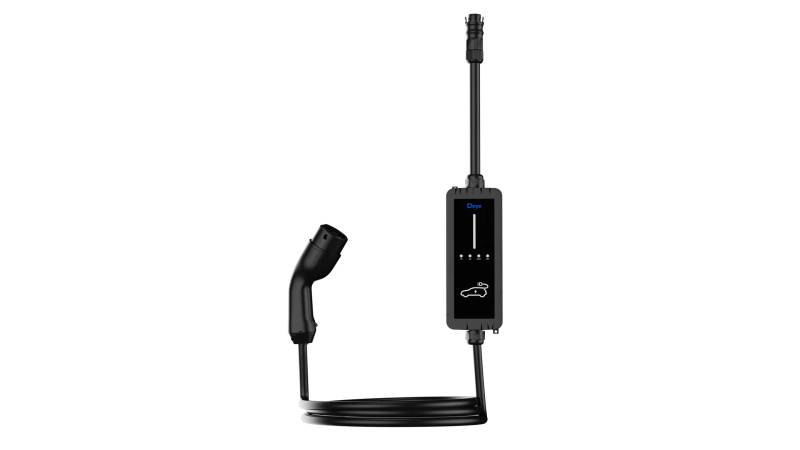

The Deye SUN-EVSE11K01 (11 kW) and SUN-EVSE22K01 (22 kW) are ultra-compact, fully smart EV chargers with LoRa, Wi-Fi and Bluetooth connectivity. Perfectly integrated with Deye hybrid inverters, they enable intelligent solar-only charging, off-peak scheduling and dynamic load management – all with IP66 weatherproofing and whisper-quiet operation (<25 dB).
Key Features
11 kW or 22 kW Single-phase or three-phase – up to 32 A
100 % Smart LoRa + Wi-Fi + BLE – seamless Deye inverter integration
Solar-Optimized Charge only with surplus PV or during low-tariff hours
Weatherproof & Silent IP66, –40 °C to +55 °C, <25 dB
Ultra-Compact Only 104 × 264 × 57.5 mm – just 3.7 kg
Maximum Safety OVP, UVP, OLP, SCP, earth-fault, surge type II
Technical Specifications
| Parameter | Value |
|---|
| Power & Connection |
- 11 kW (1-phase) or 22 kW (3-phase)
- 230 V / 400 V + N + PE
- Max. 32 A
|
| Communication |
- LoRa, Wi-Fi, Bluetooth
- Full integration with Deye Wireless EMS
|
| Physical & Environment |
- Dimensions: 104 × 264 × 57.5 mm
- Weight: 3.7 kg
- Cable: ≈4.2 m
- IP66, –40 °C to +55 °C, <25 dB
|
Deye Smart EV Charger – 11 or 22 kW, fully solar-integrated, ultra-compact, silent and 100 % weatherproof.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye SUN-EVSE11K01 / 22K01 Smart EV Charger |
| Output Power |
11 kW (1-phase) / 22 kW (3-phase) |
| Connection |
L+N+PE or 3L+N+PE |
| Max. Current |
32 A |
| Input Voltage |
230 V (1-phase) / 230/400 V (3-phase) |
| Communication |
LoRa / Wi-Fi / BLE |
| Protection |
IP66, OVP, UVP, OLP, SCP, Earth-fault, Surge Type II |
| Operating Temperature |
–40 °C to +55 °C |
| Noise Level |
< 25 dB |
| Dimensions |
104 × 264 × 57.5 mm |
| Weight |
3.7 kg |
| Cable Length |
≈4.2 m |
| MTBF |
≈100,000 h |
| Model: |
SUN-EVSE11K01/22K01-EU-AC |
| LoRa Communication: |
≈200 m range, low-power, long-distance |
| Mounting: |
DIN-Rail or Plug-In Mounting |
| Operating Temperature Range: |
–40 °C to 60 °C |
| Remote Control: |
via Deye Cloud APP and/or Inverter Display |
| Energy Automation: |
based on PV surplus, time schedules, or user logic |
| Compact Design: |
optimized for indoor/outdoor energy environments |
| CE Certified & Safety Compliant: |
IEC/EN standards, e.g. 61058, 62368 |
| Low Power Consumption: |
high efficiency and minimal load |
| Compatible with: |
Wireless Energy Management System |
