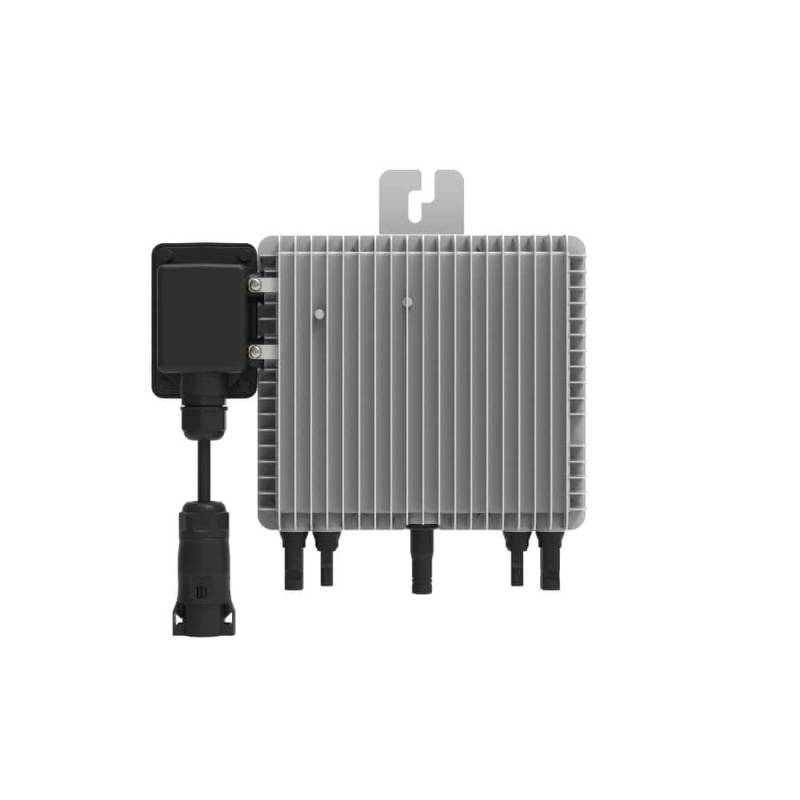

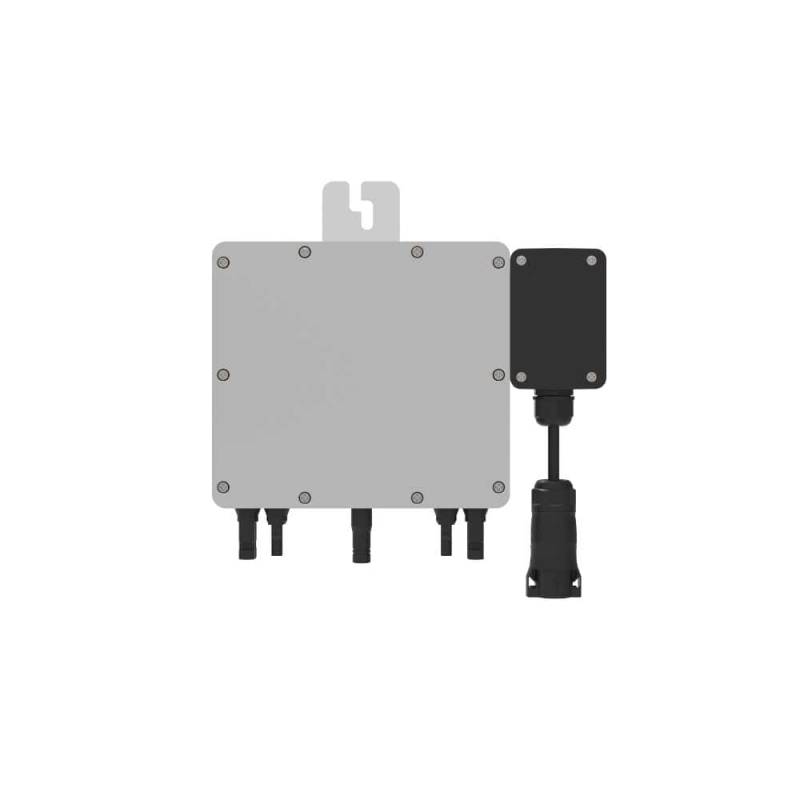

The Deye SUN-M80G4-EU-Q0 is the most popular 800 W microinverter with true Dual MPPT technology. Perfectly suited for balcony power plants up to 800 W (VDE-compliant in Germany), it features rapid shutdown < 100 ms, full IP67 sealing, integrated Wi-Fi, and an outstanding 15-year warranty with a 25-year design life.
Key Advantages
True Dual MPPT
2 independent trackers – maximum yield even with partial shading
800 W Output
Ideal for 2 × 400–500 W+ modules
Rapid Shutdown < 100 ms
Compliant with DIN VDE V 0126-95
IP67 Waterproof
Fully sealed – perfect for balconies & roofs
Built-in Wi-Fi
Module-level monitoring via app
Only 3 kg
Extremely lightweight and compact
15-Year Warranty
25-year design life – maximum reliability
Deye SUN-M80G4-EU-Q0 – The #1 800 W Microinverter for Balcony Solar Systems
Dual MPPT · Rapid Shutdown · IP67 · 15-Year Warranty · 25-Year Lifetime
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Microinverter Model SUN-M80G4-EU-Q0 |
| PV String Input Data |
| Max. PV Input Power |
210–560 W (2 pieces) |
| Max. PV Input Voltage |
60 V |
| Start-up Voltage |
20 V |
| MPPT Voltage Range |
25–55 V |
| Rated PV Input Voltage |
42.5 V |
| Max. Operating PV Input Current |
13 + 13 A |
| Max. Input Short Circuit Current |
19.5 + 19.5 A |
| No. of MPP Trackers / Strings per Tracker |
2 / 1 |
| AC Output Side |
| Rated AC Output Active Power |
800 W |
| Max. AC Output Apparent Power |
800 VA |
| Rated AC Output Current |
3.7 A / 3.5 A (230 V / 220 V) |
| Max. AC Output Current |
3.7 A / 3.5 A |
| Rated Output Voltage / Range |
220/230 V (0.85 Un – neuen1.1 Un) |
| Grid Connection Form |
L/N/PE |
| Rated Grid Frequency / Range |
50/60 Hz (45–55 Hz / 55–65 Hz) |
| Max. Units per Branch |
6 |
| Power Factor Adjustment Range |
0.9 leading – 0.9 lagging |
| Total Harmonic Distortion (THDi) |
< 3 % |
| DC Injection Current |
< 0.5 % In |
| Efficiency |
| Max. Efficiency |
96.5 % |
| Euro Efficiency |
96.0 % |
| MPPT Efficiency |
> 99 % |
| Equipment Protection |
| DC Reverse Polarity Protection |
Yes |
| AC Output Overcurrent / Overvoltage / Short Circuit Protection |
Yes |
| Thermal Protection / Anti-Islanding / Surge Protection |
Yes / Yes / Type II (AC) |
| Insulation Impedance Detection |
Yes |
| General Data |
| Communication Interface |
Wi-Fi (module-level monitoring) |
| Operating Temperature Range |
–40 °C to +65 °C (>45 °C derating) |
| Permissible Ambient Humidity |
0 – 100 % |
| Permissible Altitude |
2000 m |
| Noise Emission |
≤ 25 dB |
| Ingress Protection Rating |
IP67 |
| Cooling |
Natural cooling |
| Dimensions (W × H × D) |
280.5 × 190 × 40 mm (excl. connectors) |
| Weight |
3 kg |
| Warranty |
15 years |
| Design Lifetime |
25 years |
| Grid Regulation |
VDE-AR-N 4105, G98/G99, CEI 0-21, EN 50549, IEC 61727 etc. |
| Safety / EMC |
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/2/3/4 |
| Model: |
SUN-M80G4-EU-Q0 |
| Rated AC Output Active Power: |
800W |
| Max. Unit per Branch: |
6 |
| Warranty: |
15 Years |
