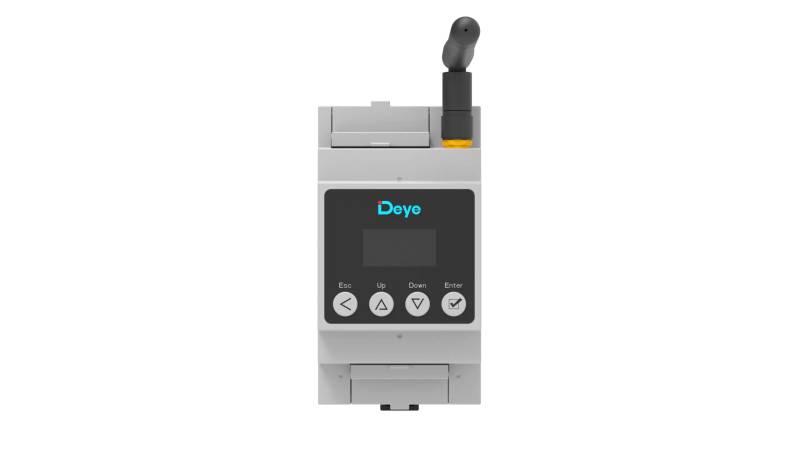

The Deye SUN-SMART-CT01 is a high-precision wireless current transformer (CT) with 50 mA secondary output and dual LoRa + RS485 communication. It delivers real-time voltage, current, power, energy, frequency and power factor data directly to your Deye hybrid inverter – perfect for accurate grid/export monitoring and intelligent load management.
Key Features
Ultra-Precise ±0.01 A / 0.1 V / 1 W accuracy
Dual Communication LoRa (≈200 m) + RS485 backup
Live Display Voltage, current, power, energy, frequency, PF
Wide Voltage Range 85–300 VAC (L–N)
Low Power ≤2 W self-consumption, 4 kV isolation
DIN-Rail Mount Compact 53 × 96 × 64 mm, only 150 g
Technical Specifications
| Parameter | Value |
|---|
| Measurement |
- CT secondary: 50 mA
- Voltage range: 85–300 VAC (L–N)
- Accuracy: ±0.01 A / 0.1 V / 0.01 Hz / 1 W
|
| Communication |
- LoRa wireless (≈200 m) + RS485
- Live display of all parameters
|
| Environment & Build |
- Self-consumption: ≤2 W
- Isolation: 4 kV / 1 min
- Operating temp.: –40 °C to +60 °C
- IP20, ≤4000 m altitude, 0–75 % humidity
- DIN-rail, 53 × 96 × 64 mm, 150 g
|
Deye Wireless CT – ultra-accurate, dual-comms, real-time energy monitoring for perfect hybrid inverter control.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye SUN-SMART-CT01 Wireless CT Monitor |
| CT Secondary Current |
50 mA |
| Voltage Range |
85–300 VAC (L–N) |
| Frequency |
50 Hz (45–55 Hz) / 60 Hz (55–65 Hz) |
| Self-Consumption |
≤2 W |
| Withstand Voltage |
4 kV / 1 min |
| Accuracy |
±0.01 A / 0.1 V / 0.01 Hz / 1 W |
| Communication |
LoRa / RS485 (≈200 m LoRa) |
| Operating Temperature |
–40 °C to +60 °C |
| Protection / Altitude |
IP20 / ≤4000 m |
| Dimensions |
53 × 96 × 64 mm |
| Weight |
150 g |
| Warranty |
5 years |
| Model: |
SUN-SMART-CT01 |
| LoRa Communication: |
≈200 m range, low-power, long-distance |
| Mounting: |
DIN-Rail or Plug-In Mounting |
| Operating Temperature Range: |
–40 °C to 60 °C |
| Remote Control: |
via Deye Cloud APP and/or Inverter Display |
| Energy Automation: |
based on PV surplus, time schedules, or user logic |
| Compact Design: |
optimized for indoor/outdoor energy environments |
| CE Certified & Safety Compliant: |
IEC/EN standards, e.g. 61058, 62368 |
| Low Power Consumption: |
high efficiency and minimal load |
| Compatible with: |
Wireless Energy Management System |
