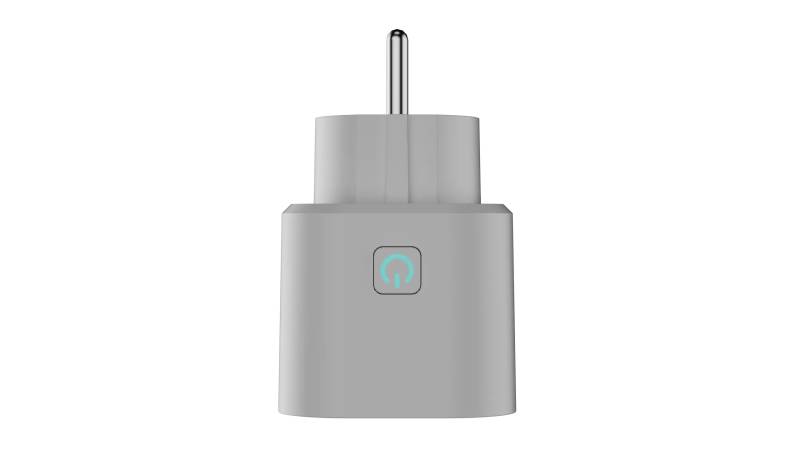

The Deye SUN-SMART-PLUG01P1-F turns any standard socket into a fully controllable 16 A smart outlet. Thanks to LoRa communication (≈200 m range), it integrates seamlessly into the Deye Wireless Energy Management System – no Wi-Fi, no internet, just fast and reliable offline control via the inverter display or Deye Cloud App.
Key Features
16 A / 3680 W max Suitable for heaters, pumps, washing machines, etc.
LoRa 200 m range Works even through walls – completely offline-capable
Zero Installation Simply plug in – ready in seconds
Full Smart Control Scheduling, solar-priority, time-of-use tariffs via app or inverter
Robust & Certified –40 °C to +60 °C, VDE 0620-2-1 & EN 61058, 5-year warranty
Tiny & Light Only 51.2 × 51.2 × 64 mm – 80 g
Technical Specifications
| Parameter | Value |
|---|
| Electrical |
- Rated voltage: 220–250 VAC
- Max. current: 16 A (≈3680 W)
- Frequency: 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz)
|
| Communication & Range |
- LoRa wireless
- Range: ≈200 m (line of sight)
|
| Physical & Environment |
- Dimensions: 51.2 × 51.2 × 64 mm
- Weight: 80 g
- Operating temp.: –40 °C to +60 °C
- IP20
|
Deye Smart Plug – 16 A LoRa power switch: plug in, control intelligently, save energy – no Wi-Fi needed!
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye SUN-SMART-PLUG01P1-F Smart Plug |
| Rated Voltage |
220–250 VAC |
| Max. Current |
16 A (≈3680 W) |
| Frequency |
50 Hz (45–55 Hz) / 60 Hz (55–65 Hz) |
| Communication |
LoRa |
| Range |
≈200 m (line of sight) |
| Operating Temperature |
–40 °C to +60 °C |
| Protection Rating |
IP20 |
| Dimensions |
51.2 × 51.2 × 64 mm |
| Weight |
80 g |
| Warranty |
5 years |
| Certifications |
VDE 0620-2-1, EN 61058 |
| Model: |
SUN-SMART-PLUG01P1-F |
| LoRa Communication: |
≈200 m range, low-power, long-distance |
| Mounting: |
DIN-Rail or Plug-In Mounting |
| Operating Temperature Range: |
–40 °C to 60 °C |
| Remote Control: |
via Deye Cloud APP and/or Inverter Display |
| Energy Automation: |
based on PV surplus, time schedules, or user logic |
| Compact Design: |
optimized for indoor/outdoor energy environments |
| CE Certified & Safety Compliant: |
IEC/EN standards, e.g. 61058, 62368 |
| Low Power Consumption: |
high efficiency and minimal load |
| Compatible with: |
Wireless Energy Management System |
