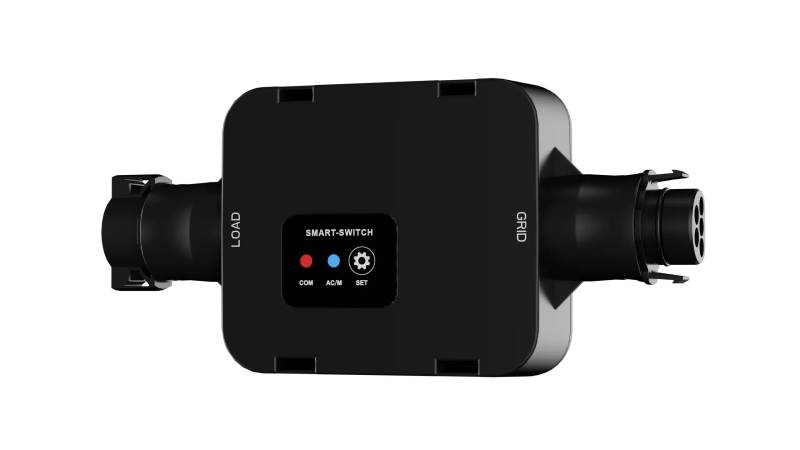

The Deye SUN-SMART-SWITCH01P3 is a powerful, fully weatherproof (IP65) LoRa smart switch that controls single- or three-phase loads up to 25 A. Ideal for pumps, pool heaters, saunas, irrigation systems or any high-power outdoor appliance – all intelligently managed via your Deye hybrid inverter or Cloud App, completely offline.
Key Features
25 A / up to 17 kW Handles single- or three-phase heavy loads
LoRa 200 m range Reliable control even in remote locations – no Wi-Fi needed
IP65 Weatherproof Perfect for outdoor and damp environments
Flexible Wiring L1/N or L1/L2/L3/N – 94–238 VAC per phase
Smart Automation Solar-priority, time scheduling, battery-SOC logic
5-Year Warranty VDE 0620-2-1 & EN 61058 certified
Technical Specifications
| Parameter | Value |
|---|
| Electrical |
- Voltage range: 94–238 VAC (per phase)
- Max. current: 25 A
- Connection: L1/N or L1/L2/L3/N
- Frequency: 50/60 Hz (auto-detect)
|
| Communication |
- LoRa wireless
- Range: ≈200 m (line of sight)
|
| Environment & Build |
- Operating temp.: –40 °C to +45 °C
- IP65 fully sealed
- Weight: 0.4 kg
|
Deye 25 A LoRa Smart Switch – bullet-proof, weatherproof, and intelligently controls your biggest loads with zero internet.
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
|
| Parameter | Value |
|---|
| Deye SUN-SMART-SWITCH01P3 Smart Switch |
| Voltage Range |
94–238 VAC (per phase) |
| Connection Type |
L1/N or L1/L2/L3/N |
| Max. Current |
25 A |
| Frequency |
50 Hz (45–55 Hz) / 60 Hz (55–65 Hz) |
| Communication |
LoRa |
| Range |
≈200 m (line of sight) |
| Operating Temperature |
–40 °C to +45 °C |
| Protection Rating |
IP65 |
| Weight |
0.4 kg |
| Warranty |
5 years |
| Certifications |
VDE 0620-2-1, EN 61058 |
| Model: |
SUN-SMART-SWITCH01P3 |
| LoRa Communication: |
≈200 m range, low-power, long-distance |
| Mounting: |
DIN-Rail or Plug-In Mounting |
| Operating Temperature Range: |
–40 °C to 60 °C |
| Remote Control: |
via Deye Cloud APP and/or Inverter Display |
| Energy Automation: |
based on PV surplus, time schedules, or user logic |
| Compact Design: |
optimized for indoor/outdoor energy environments |
| CE Certified & Safety Compliant: |
IEC/EN standards, e.g. 61058, 62368 |
| Low Power Consumption: |
high efficiency and minimal load |
| Compatible with: |
Wireless Energy Management System |
